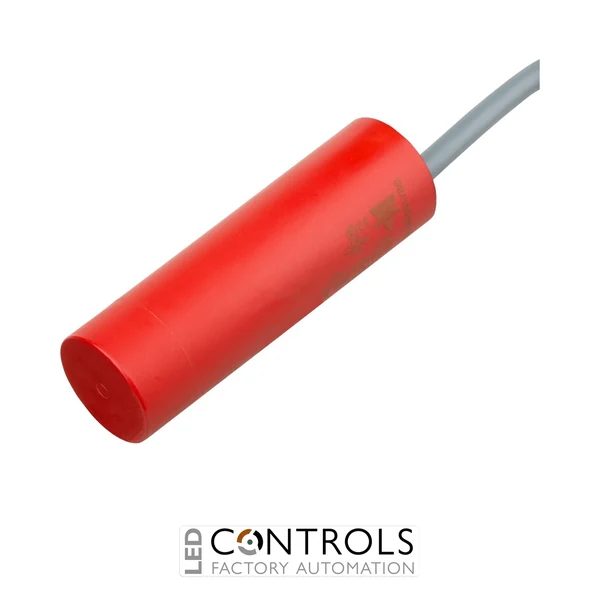

Why Choose the Carlo Gavazzi VC12RN924 Capacitive Sensor?
The Carlo Gavazzi VC12RN924 is a reliable capacitive proximity and level sensor with integrated SPDT relay output, designed for non-contact detection of solid, liquid and granular materials in industrial automation applications. Part of the proven Carlo Gavazzi VC12RN capacitive sensor series, it provides adjustable sensitivity, robust construction and direct relay switching for flexible system integration.
The VC12RN924 uses capacitive sensing technology to detect changes in the electrical field caused by nearby materials, allowing reliable detection of both conductive and non-conductive targets. Its adjustable sensing range of 4–12 mm makes it suitable for applications where accurate material detection and level monitoring are required.
With a 24 VAC/DC supply, SPDT change-over relay output, 2 m PVC cable connection and IP67 protection, the VC12RN924 is ideal for industrial level control, feeding systems, material handling equipment and automation machinery.
Key Advantages
- Adjustable 4–12 mm sensing range allows precise adjustment for different materials and applications.
- SPDT relay output provides flexible switching for control circuits.
- Capacitive technology detects a wide range of metallic and non-metallic materials.
- 24 VAC/DC supply operation suits common industrial control systems.
- IP67 protection provides resistance against dust and temporary water ingress.
- 2 m PVC cable simplifies installation and connection.
- Integrated LED indication supports commissioning and status monitoring.
Key Features
- Carlo Gavazzi VC12RN capacitive sensor series.
- 12 mm rated operating distance.
- 4–12 mm adjustable sensitivity range.
- SPDT relay change-over output.
- 24 VAC/DC power supply.
- Non-flush mounting configuration.
- 32 mm cylindrical smooth-barrel housing.
- 2 m PVC cable connection.
- IP67 protection rating.
- LED status indication.
- Short-circuit and transient protection.
Reliable Capacitive Detection for Industrial Applications
Capacitive sensors operate by detecting changes in capacitance caused by the presence of a target material within the sensing field. Unlike inductive sensors, they are capable of detecting a wide variety of materials including liquids, powders, granules, plastics and other non-metallic substances.
The VC12RN924 combines adjustable sensitivity with an integrated relay output, allowing direct connection to suitable control systems. Its compact cylindrical design and rugged IP67 enclosure make it suitable for demanding industrial environments where dependable material detection is required.
Typical Applications
- Liquid level detection in tanks and containers.
- Feed and grain level monitoring systems.
- Hopper and silo material detection.
- Packaging and processing machinery.
- Presence detection of plastic, powder and granular materials.
- Industrial automation and control systems.
- Material handling equipment.
