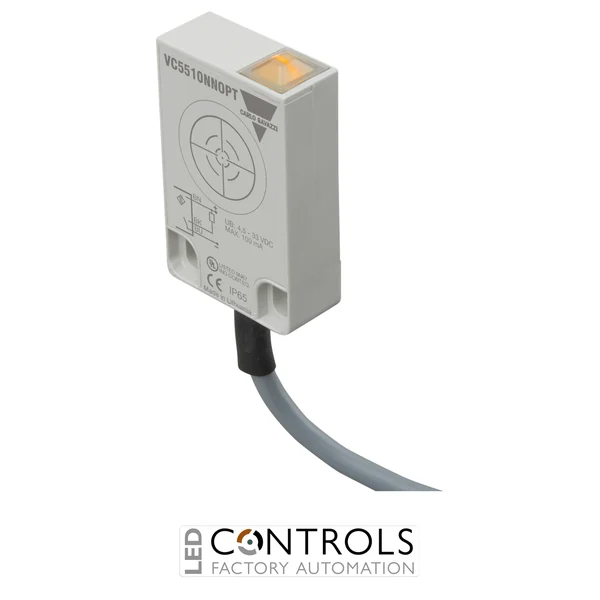

Why Choose the Carlo Gavazzi VC5510NNOPT Capacitive Level Sensor?
The Carlo Gavazzi VC5510NNOPT is a compact capacitive level detector with NPN normally open output, designed for reliable non-contact level monitoring of liquids and materials in industrial automation applications. Part of the Carlo Gavazzi VC5510 capacitive level sensor series, it features a flat-pack polycarbonate housing, adjustable sensing sensitivity and a simple cable connection for straightforward installation.
The VC5510NNOPT uses capacitive sensing technology to detect changes in the dielectric properties of materials, making it suitable for level detection applications involving liquids and other materials. Its adjustable sensing range of 2–10 mm allows the sensor response to be tuned to suit the installation requirements, while the NPN normally open transistor output provides direct connection to common industrial control systems.
With a 5–30 V DC supply, NPN normally open output, 1.5 m PVC cable, compact 35 × 55 × 15 mm flat-pack housing and IP65 protection, the VC5510NNOPT is well suited to level monitoring and detection tasks in automation, machinery and fluid-handling applications.
Key Advantages
- Adjustable 2–10 mm sensing range enables accurate setup for different applications.
- Capacitive sensing technology allows detection of liquids and other materials.
- NPN normally open output provides simple integration with control systems.
- Flat-pack housing design allows convenient installation in restricted spaces.
- 5–30 V DC operation suits common industrial control voltages.
- 1.5 m PVC cable connection simplifies wiring and installation.
- IP65 protection provides reliable operation in industrial environments.
Key Features
- Carlo Gavazzi VC5510 capacitive level detector series.
- Flat-pack polycarbonate / ABS housing.
- Adjustable sensing distance from 2–10 mm.
- NPN transistor output, normally open.
- 100 mA continuous load current.
- 5–30 V DC supply voltage.
- No switching delay version.
- Red LED activation indication.
- 1.5 m PVC cable connection.
- IP65 protection rating.
- Compact 35 × 55 × 15 mm housing.
Reliable Capacitive Level Detection for Industrial Applications
Capacitive level sensors detect changes in capacitance caused by the presence of a material near the sensing surface. This operating principle makes them suitable for monitoring liquids and other materials where non-contact level detection is required.
The VC5510NNOPT combines a compact flat-pack format with adjustable sensitivity, allowing engineers to configure the sensor for the specific installation. Its NPN normally open output and low-voltage DC operation make it suitable for direct connection to industrial controllers and automation equipment.
Typical Applications
- Liquid level detection and monitoring.
- Water and fluid container level control.
- Disinfection fluid level monitoring.
- Tank and vessel level sensing.
- Industrial automation equipment.
- Machine control and process monitoring systems.
- OEM equipment requiring compact level detection.
