Why Choose the Carlo Gavazzi VC5510PNCP Capacitive Level Sensor?

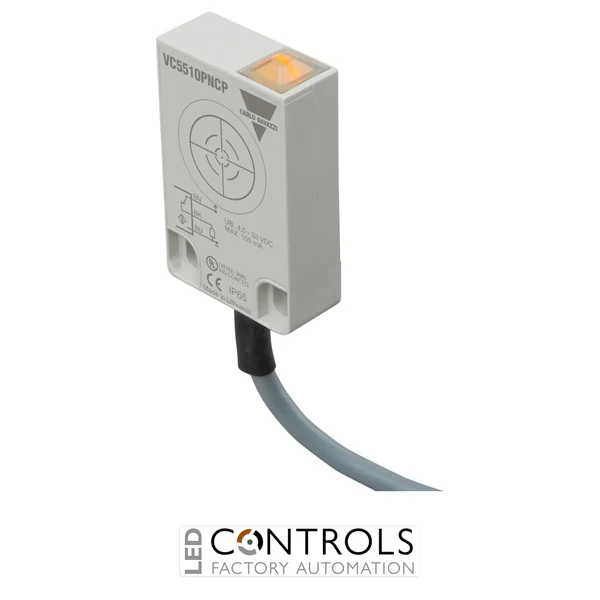

The Carlo Gavazzi VC5510PNCP is a compact flat-pack capacitive proximity and level sensor with PNP normally closed output, designed for reliable non-contact detection of liquids and materials in industrial automation applications. As part of the Carlo Gavazzi VC5510 capacitive sensor series, it combines adjustable sensitivity, a slim rectangular housing and simple cable connection for flexible installation.
The VC5510PNCP uses capacitive sensing technology to detect changes in capacitance caused by the presence of a target material. Its adjustable sensing range of 2–10 mm allows the sensor to be tuned for the application, while the PNP normally closed transistor output provides reliable switching for industrial control systems.
With a 5–30 V DC supply, 10 mm rated sensing distance, 1.5 m PVC cable, compact 35 × 55 × 15 mm flat-pack housing and IP65 protection, the VC5510PNCP is suitable for level detection, fluid monitoring and compact automation installations.
Key Advantages
- Adjustable 2–10 mm sensing range enables accurate adjustment for different applications.
- PNP normally closed output provides dependable integration with industrial control systems.
- Capacitive sensing technology detects liquids and a wide range of non-metallic materials.
- Flat-pack housing design allows installation where space is limited.
- 5–30 V DC operation supports common industrial supply voltages.
- 1.5 m PVC cable connection simplifies electrical installation.
- IP65 protection provides reliable operation in industrial environments.
Key Features
- Carlo Gavazzi VC5510 capacitive sensor series.
- Flat-pack rectangular housing.
- 10 mm rated sensing distance.
- Adjustable 2–10 mm sensing range.
- PNP transistor output.
- Normally closed (NC) switching function.
- 100 mA maximum output current.
- 5–30 V DC rated supply voltage.
- 1.5 m PVC cable connection.
- Red LED activation indication.
- IP65 protection rating.
- Compact 35 × 55 × 15 mm housing.
Reliable Capacitive Level Detection for Industrial Applications
Capacitive sensors detect changes in the electrical capacitance field around the sensing surface when a target material approaches. This operating principle allows detection of liquids and non-metallic materials that cannot be detected using conventional inductive sensing technology.
The VC5510PNCP provides a compact and practical solution for level and presence detection tasks. Its adjustable sensitivity, PNP normally closed output and slim flat-pack design make it suitable for machine builders and automation engineers requiring reliable detection in restricted installation areas.
Typical Applications
- Liquid level detection and monitoring.
- Water and fluid container level control.
- Disinfection fluid monitoring systems.
- Tank and vessel level sensing.
- Packaging and processing machinery.
- Industrial automation equipment.
- OEM machinery requiring compact level detection.
