Why Choose the Carlo Gavazzi VC5510PNCPT Capacitive Level Sensor?

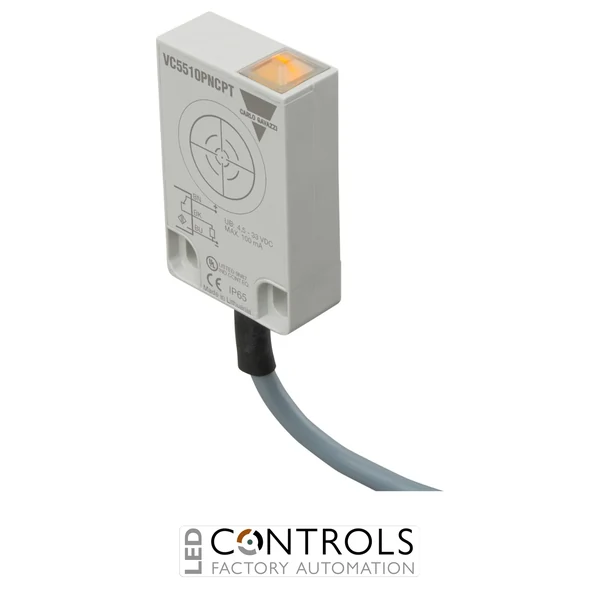

The Carlo Gavazzi VC5510PNCPT is a compact flat-pack capacitive proximity and level sensor with PNP normally closed output and integrated ON/OFF delay, designed for reliable detection of liquids, powders, granules and other materials. Its rectangular housing is particularly suitable for level-detection applications where a conventional cylindrical sensor may be difficult to install.
The VC5510PNCPT provides a rated sensing distance of 10 mm, adjustable from 2–10 mm to suit different materials and installation conditions. Capacitive sensing enables detection of both conductive and non-conductive materials, making the sensor useful for monitoring product levels in tanks, hoppers, containers and plastic-processing equipment.
With a PNP normally closed transistor output, 5–30 V DC supply and integrated ON/OFF delay functionality, the VC5510PNCPT provides flexible integration with PLCs and industrial control equipment. Its 35 × 55 × 15 mm PC/ABS housing, 1.5 m PVC cable and IP65 protection provide a compact and practical sensing solution for industrial automation.
Key Advantages
- Adjustable 2–10 mm capacitive sensing distance for flexible material and level detection.
- 10 mm rated sensing distance provides useful detection capability in a compact flat-pack housing.
- PNP normally closed output provides straightforward integration with compatible PLC and control inputs.
- Integrated ON/OFF delay functionality helps provide stable switching in level-control applications.
- Suitable for detecting liquids, powders, granules and other non-metallic materials.
- Compact 35 × 55 × 15 mm rectangular housing supports space-efficient installation.
- 5–30 V DC supply is compatible with common industrial control voltages.
- IP65 protection provides dependable performance in industrial environments.
Key Features
- Carlo Gavazzi VC5510 capacitive sensor series.
- 10 mm rated sensing distance.
- 2–10 mm adjustable sensing range.
- Non-flush installation.
- PNP transistor output.
- Normally closed (NC) output function.
- Maximum output current of 100 mA.
- 5–30 V DC rated power supply.
- Voltage drop of ≤1.5 V DC.
- No-load supply current of ≤10 mA.
- Integrated ON/OFF delay functionality.
- Switching frequency of approximately 0.1 Hz for the time-delay version.
- Red LED switching indication.
- Compact 35 × 55 × 15 mm flat-pack housing.
- PC/ABS housing construction.
- 1.5 m PVC cable for electrical connection.
- IP65 protection rating.
Compact Capacitive Level Detection with Delayed Switching
Capacitive sensors detect changes in electrical capacitance caused by the presence of a target material. This enables the Carlo Gavazzi VC5510PNCPT to detect many liquids, powders, granules and other materials without mechanical contact. Its adjustable 2–10 mm sensing range allows the detection sensitivity to be matched to the material and installation conditions.
The integrated ON/OFF delay functionality makes the VC5510PNCPT particularly useful for level-control applications where brief changes in the sensing condition could otherwise cause unwanted output switching. Combined with its PNP normally closed output and compact flat-pack housing, the sensor provides a practical solution for tanks, containers, hoppers and material-handling machinery.
Typical Applications
- Liquid level detection.
- Powder and granular material monitoring.
- Hopper and container level control.
- Plastic-processing machinery.
- Material presence detection.
- Packaging and filling equipment.
- Industrial process monitoring.
- OEM machinery and automation systems requiring delayed level switching.
