Why Choose the Carlo Gavazzi VC5510PNOPT Capacitive Proximity Sensor?

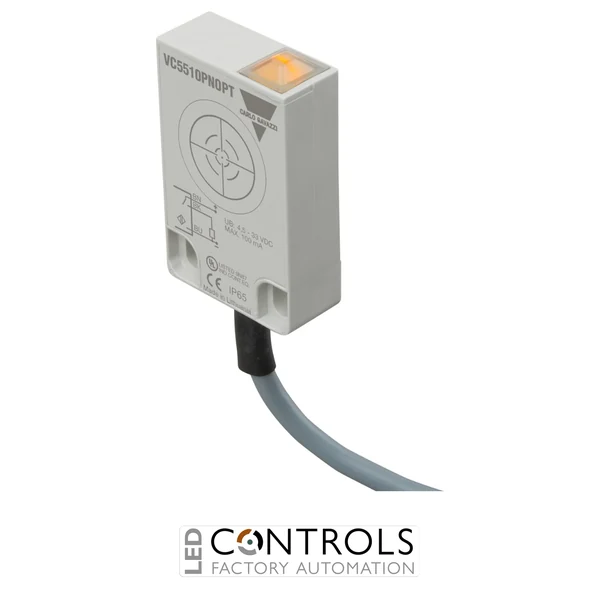

The Carlo Gavazzi VC5510PNOPT is a compact capacitive proximity sensor for level detection, designed for reliable detection of solid or liquid materials in industrial automation applications. As part of the Carlo Gavazzi VC5510 capacitive sensor series, it combines a flat rectangular housing with adjustable sensitivity and an integrated time-delay function.
This sensor uses capacitive sensing technology to detect changes in dielectric properties, making it suitable for monitoring materials through non-metallic container walls or for direct level sensing. Its adjustable sensing range allows the device to be matched to the target material and installation conditions, while the PNP normally open output provides straightforward integration with PLCs and industrial control systems.
With a nominal sensing distance of 10 mm, adjustable sensing range of 2–10 mm, and a 5–30 V DC supply, the VC5510PNOPT is well suited to compact machinery, tanks, hoppers and material handling systems. The rectangular plastic housing measures approximately 55 × 35 × 15 mm and provides IP65 protection.
Key Advantages
- Compact capacitive proximity sensor for industrial level detection.
- 10 mm nominal sensing distance with adjustable sensitivity from approximately 2–10 mm.
- PNP normally open output for connection to industrial control systems.
- Integrated on/off time-delay functionality helps stabilise level-detection applications.
- Wide 5–30 V DC operating supply.
- IP65-rated flat rectangular housing for industrial installations.
Key Features
- Carlo Gavazzi VC5510 capacitive sensor series.
- 10 mm nominal sensing distance.
- 2–10 mm adjustable sensing range.
- PNP normally open (NO) output.
- Integrated on/off delay.
- 5–30 V DC rated power supply.
- Rectangular flat-pack housing with cable connection.
- IP65 degree of protection.
Reliable Capacitive Level Detection for Industrial Automation
Capacitive proximity sensors detect changes in capacitance caused by the presence of a target material. This allows sensors such as the Carlo Gavazzi VC5510PNOPT to detect liquids, powders, granules and other materials, including in applications where the target is sensed through a non-metallic vessel wall.
The VC5510PNOPT combines adjustable sensitivity with an integrated time-delay function, helping reduce unwanted switching caused by splashing, material movement or short-term changes in the sensing area. Its compact flat-pack construction also makes it suitable where mounting space is limited.
Typical Applications
- Liquid level detection in non-metallic tanks and containers.
- Powder and granular material monitoring.
- Hopper and silo level detection.
- Packaging and filling machinery.
- Food and beverage processing equipment.
- Industrial automation and material handling systems.
