Why Choose the Carlo Gavazzi VH2 Conductive Level Sensor?

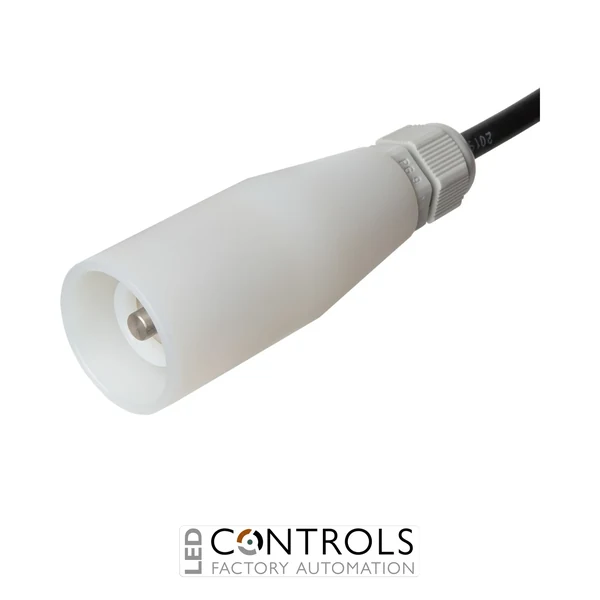

The Carlo Gavazzi VH2 is a compact and reliable single-electrode conductive level probe designed for detecting the level of conductive liquids in tanks, reservoirs and industrial process systems. Its hanging-probe configuration makes it particularly suitable for applications requiring straightforward liquid-level detection from a suspended sensor.
The VH2 uses the conductive sensing principle and incorporates a single stainless steel electrode with Nylon 6 insulation. When used as part of a compatible conductive level-control system, the probe provides dependable detection of conductive liquids for level monitoring, filling and draining applications.
Supplied with an integrated 5 m neoprene cable, the VH2 provides flexible installation without requiring a separate connection at the probe. Its IP67 protection rating and operating temperature range of 0–90 °C make it suitable for a wide variety of industrial liquid-level monitoring environments.
Key Advantages
- Reliable conductive liquid-level detection for industrial applications.
- Single stainless steel electrode in a compact hanging-probe format.
- Insulated electrode with Nylon 6 insulation.
- Integrated 5 m neoprene cable simplifies installation.
- IP67 protection rating for demanding industrial environments.
- Operating temperature range of 0–90 °C.
Key Features
- Carlo Gavazzi VH2 conductive level probe.
- 1-electrode hanging sensor configuration.
- Stainless steel sensing electrode.
- Insulated electrode design.
- Nylon 6 insulation and housing.
- Integrated 5 m neoprene cable.
- IP67 enclosure protection.
- Designed for conductive liquid-level control systems.
Reliable Conductive Liquid-Level Monitoring
Conductive level probes detect the presence of electrically conductive liquids by using the liquid itself as part of the sensing circuit. When the liquid reaches the electrode, a compatible level controller detects the resulting conductive path and can use this information to control pumps, valves, alarms or other process equipment.
The Carlo Gavazzi VH2 combines a single insulated stainless steel electrode with a flexible 5 m neoprene cable, allowing the probe to be suspended at the required switching level. This makes it a practical solution for point-level monitoring in tanks and reservoirs containing suitable conductive liquids.
Typical Applications
- Industrial tank level monitoring.
- Reservoir and vessel level detection.
- Pump filling and draining control systems.
- High- or low-level alarm systems.
- Water and conductive liquid monitoring.
- Industrial process and automation systems.
