Why Choose the IMO VK2/A0-1B Inductive Proximity Sensor?

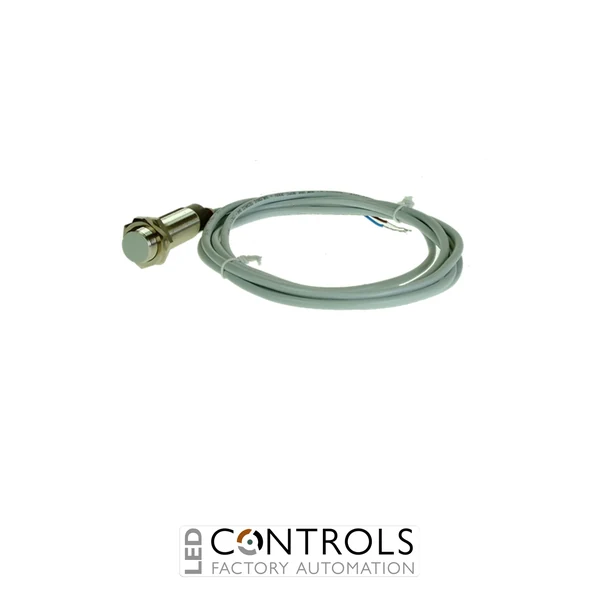

The IMO VK2/A0-1B is a robust and reliable inductive proximity sensor designed for non-contact detection of metal objects in industrial machinery, automation systems and control applications. As part of the IMO VK series of M18 AC inductive sensors, it combines a shielded cylindrical design with a 5 mm sensing distance and normally open TRIAC output for dependable object detection.
The VK2/A0-1B operates across a wide 20–253 V AC supply range at 50 / 60 Hz and uses a two-wire AC connection with a fixed 2 m PVC cable. Its flush-mounted M18 nickel-plated brass housing provides a practical solution for machine installations where reliable proximity detection and a compact cylindrical sensor are required.
With a nominal sensing distance of 5 mm, an operating distance of up to approximately 4.05 mm and a switching frequency of 25 Hz, the VK2/A0-1B is suitable for detecting ferrous metal targets in automated machinery. Its IP67 protection rating and −25 to +70 °C operating temperature range support use in demanding industrial environments.
Key Advantages
- Reliable inductive proximity sensor for industrial automation.
- 5 mm nominal sensing distance for non-contact metal detection.
- 20–253 V AC supply supports a wide range of industrial control voltages.
- Normally open TRIAC output provides AC switching for compatible control circuits.
- Shielded M18 cylindrical housing enables flush installation.
- IP67 protection supports reliable operation in demanding industrial environments.
Key Features
- IMO VK series AC inductive proximity sensor.
- M18 shielded cylindrical construction.
- 5 mm nominal sensing distance.
- 0–4.05 mm operating distance.
- 20–253 V AC operating voltage at 50 / 60 Hz.
- TRIAC normally open output.
- 25 Hz switching frequency.
- Yellow LED output-state indicator.
- 2 m PVC cable with cable exit.
- Nickel-plated brass housing.
- IP67 protection rating.
Reliable Non-Contact Metal Detection
Inductive proximity sensors such as the IMO VK2/A0-1B detect metallic objects without requiring physical contact. When a suitable metal target enters the sensor's detection field, the sensor switches its output, allowing machinery and automation controllers to respond to the detected position or movement.
The VK2/A0-1B uses a shielded M18 housing for flush mounting and provides a 5 mm nominal sensing distance. Its wide 20–253 V AC supply range, normally open TRIAC output and yellow output-state LED make it suitable for a broad range of industrial sensing and control applications.
Typical Applications
- Industrial machine position detection.
- Conveyor and material handling systems.
- Automated production machinery.
- Metal object presence detection.
- Machine sequencing and control systems.
- Industrial automation and OEM machine-building applications.
