Why Choose the Carlo Gavazzi VN2 Conductive Level Probe?
The Carlo Gavazzi VN2 is a robust conductive level probe designed for reliable detection and control of electrically conductive liquids in tanks, vessels, wells and industrial process systems. As part of the Carlo Gavazzi VN series, it provides a practical solution for maximum and minimum liquid-level detection, filling control, draining control and pump protection applications.

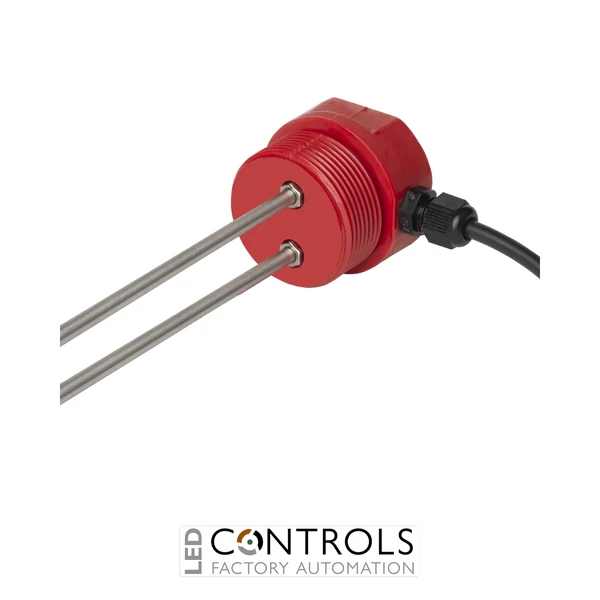

The VN2 incorporates two 1 m long stainless steel AISI 316 electrodes, each with a diameter of 5 mm. The standard-length electrodes can be shortened to suit the required switching levels, allowing the probe configuration to be adapted to individual tank depths and process requirements.
For straightforward installation, the VN2 is supplied with a 2 m PVC connection cable and provides an IP67 protection rating. With a maximum operating temperature of 90 °C and maximum pressure rating of 10 bar, it provides a durable sensing solution for a wide range of industrial conductive-liquid level-control systems.
Key Advantages
- Reliable conductive liquid-level detection for industrial applications.
- Two 1 m stainless steel electrodes enable dependable level sensing.
- AISI 316 stainless steel construction provides excellent corrosion resistance.
- Electrodes can be shortened to suit the required sensing levels.
- Pre-wired 2 m PVC cable simplifies electrical connection.
- IP67 protection supports operation in demanding industrial environments.
Key Features
- Carlo Gavazzi VN series conductive level probe.
- Two-electrode configuration.
- 1,000 mm electrode length.
- 5 mm electrode diameter.
- AISI 316 stainless steel electrodes.
- 2 m PVC connection cable.
- IP67 degree of protection.
- Maximum operating temperature of 90 °C.
- Maximum pressure of 10 bar.
- Designed for use with conductive liquids and compatible level-control amplifier relays.
Reliable Conductive Liquid Level Control
Conductive level sensing uses the electrical conductivity of a liquid to determine when the liquid reaches the installed electrodes. When connected to a compatible amplifier relay, the Carlo Gavazzi VN2 can provide maximum and minimum level detection and can form part of automatic filling, draining and pump-control systems.
The two stainless steel electrodes provide flexibility for level-control applications, while their 1 m standard length can be shortened according to the required switching points. The combination of corrosion-resistant electrodes, an IP67 enclosure and a pre-wired PVC cable makes the VN2 particularly suitable for dependable industrial liquid-level monitoring.
Typical Applications
- Industrial tank and vessel level control.
- Water and wastewater monitoring systems.
- Maximum and minimum liquid-level detection.
- Automatic tank filling and draining systems.
- Wells and municipal water installations.
- Pump protection and level-controlled pumping systems.
- Industrial process equipment handling conductive liquids.
