Why Choose the Carlo Gavazzi VNI1 Conductive Level Probe?

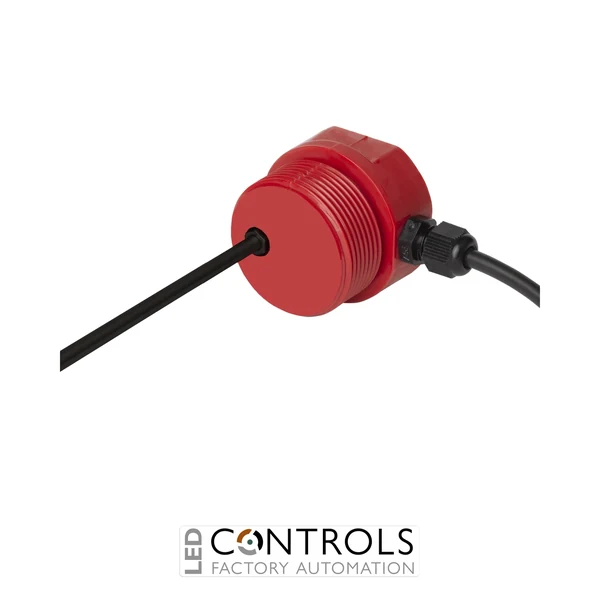

The Carlo Gavazzi VNI1 is a robust conductive level probe designed for reliable detection and control of electrically conductive liquids in tanks, reservoirs and industrial process systems. Part of the Carlo Gavazzi VN series, the VNI1 uses a single insulated electrode and is suitable for maximum or minimum level control in filling, draining and liquid monitoring applications.
The VNI1 incorporates one 1 m long AISI 316 stainless steel electrode with a diameter of 5 mm. The electrode is insulated with polyethylene, helping provide controlled sensing performance, while its standard length can be shortened to suit the required detection point within the application.
For straightforward installation, the probe is supplied with a permanently connected 2 m PVC cable and features a 1½ inch pipe-thread mounting connection. With an IP67 protection rating and durable stainless steel sensing element, the VNI1 provides a practical solution for industrial water management, process control and conductive liquid level monitoring.
Key Advantages
- Reliable conductive liquid level detection for industrial applications.
- Single 1 m AISI 316 stainless steel electrode provides excellent durability.
- Polyethylene-insulated electrode for controlled level sensing.
- Standard electrode can be cut to the required sensing length.
- Supplied with a permanently connected 2 m PVC cable.
- IP67 protection rating supports use in demanding industrial environments.
- 1½ inch pipe-thread mounting provides secure installation into compatible tanks and vessels.
- Suitable for maximum and minimum level control, filling, draining and alarm applications.
Key Features
- Carlo Gavazzi VN series conductive level probe.
- Manufacturer part number VNI1.
- Single AISI 316 stainless steel electrode.
- 1 m standard electrode length.
- 5 mm electrode diameter.
- Electrode supplied with polyethylene insulation.
- 2 m PVC connection cable.
- IP67 enclosure protection.
- Threaded installation using a 1½ inch pipe thread.
- Designed for conductive liquid level monitoring and control.
Reliable Conductive Level Detection for Industrial Processes
Conductive level sensing uses the electrical conductivity of a liquid to determine when the liquid reaches a defined sensing point. The Carlo Gavazzi VNI1 can be connected to a suitable level control relay or amplifier to provide maximum or minimum level detection for filling, emptying, alarm and process-control functions.
The VNI1 is supplied with a standard 1 m insulated electrode that can be shortened to position the sensing point at the required level. This flexibility makes the probe suitable for applications across water distribution, water treatment, agriculture, chemical processing, food processing and general industrial automation.
Typical Applications
- Industrial tank level monitoring.
- Maximum and minimum liquid level control.
- Automatic filling and draining systems.
- Water distribution and water treatment systems.
- Reservoir and storage vessel monitoring.
- Agricultural liquid management systems.
- Chemical and food processing applications with compatible conductive liquids.
- Industrial process and automation systems.
