Why Choose the Carlo Gavazzi VNI4 Conductive Level Probe?
The Carlo Gavazzi VNI4 is a reliable conductive level probe designed for accurate detection and control of electrically conductive liquids in industrial tanks, vessels and process systems. As part of the Carlo Gavazzi VN series, it provides a dependable solution for multi-point liquid-level monitoring, including filling, draining and pump-control applications.

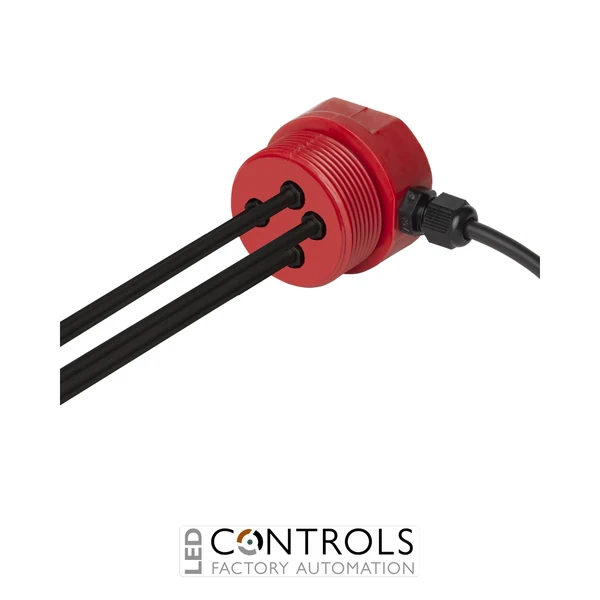

The VNI4 features four 1 m stainless steel AISI 316 probes with 5 mm diameter electrodes and electrode isolation. This multi-electrode arrangement enables several liquid-level switching points to be monitored from a single probe assembly, while the insulated design helps maintain reliable separation between sensing points.
Supplied with a 2 m PVC cable and an IP67 protection rating, the VNI4 is suitable for demanding industrial environments. The probe is designed to operate with compatible Carlo Gavazzi conductive level-control relays, allowing flexible configuration of maximum and minimum level functions.
Key Advantages
- Reliable conductive liquid-level detection for industrial automation applications.
- Four insulated AISI 316 stainless steel probes provide multi-level sensing capability.
- 1 m probe length suitable for a wide range of tank and vessel installations.
- Electrode isolation improves separation between sensing points.
- 2 m PVC cable enables straightforward electrical connection.
- IP67 protection supports dependable operation in industrial environments.
Key Features
- Carlo Gavazzi VN series conductive level probe.
- Four-electrode configuration.
- 4 × 1,000 mm stainless steel AISI 316 probes.
- 5 mm probe diameter.
- Insulated electrodes.
- 2 m PVC cable connection.
- IP67 degree of protection.
- Maximum operating temperature up to 90 °C.
- Designed for use with conductive level-control amplifiers.
Reliable Conductive Liquid Level Control
Conductive level probes operate by detecting the electrical conductivity of liquids between electrodes. When connected to a suitable Carlo Gavazzi level-control relay, the VNI4 can provide dependable high-level, low-level and intermediate-level monitoring functions for automated processes.
The four isolated stainless steel electrodes allow engineers to create flexible multi-point level-control systems using a single sensor assembly. This makes the VNI4 suitable for applications where accurate liquid-level monitoring and reliable switching performance are required.
Typical Applications
- Industrial tank level monitoring.
- Water and wastewater control systems.
- Automatic filling and draining equipment.
- Pump control and protection systems.
- Process automation installations.
- Conductive liquid storage vessels and reservoirs.
