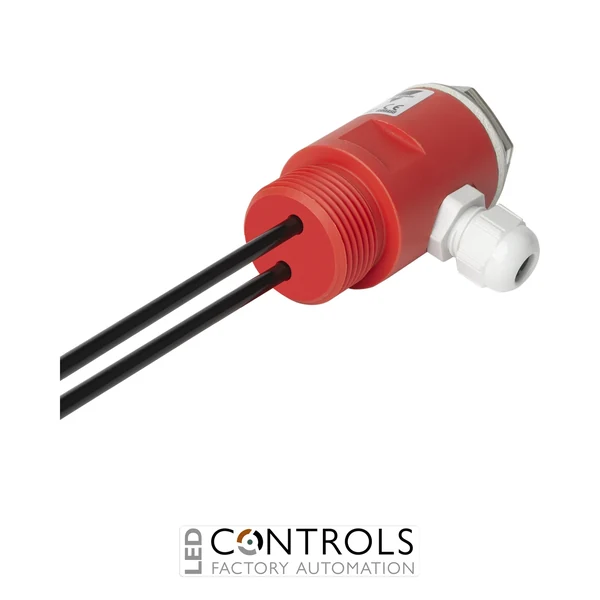

Carlo Gavazzi VPC210 is an IP67 conductive liquid level probe with two 500 mm AISI 316 stainless steel electrodes, PVC housing, 1-inch pipe thread and screw-terminal connection for industrial level monitoring.
£105.28
The Carlo Gavazzi VPC210 is a robust conductive liquid level probe designed for reliable level monitoring of electrically conductive liquids in tanks, reservoirs and industrial process equipment. Part of the Carlo Gavazzi VPC series, it features two 500 mm electrodes for use with a compatible conductive level-control amplifier or relay.
Both electrodes are manufactured from corrosion-resistant AISI 316 stainless steel, measure 4 mm in diameter and are electrically isolated. The standard 500 mm probe length can be shortened to suit the required sensing levels, making the VPC210 adaptable to different tank dimensions and filling or draining control applications.
The VPC210 uses a durable PVC housing with a 1-inch pipe thread for installation into a suitable tank or vessel. Screw terminals provide the electrical connection, while the IP67 protection rating and operating temperature range of 0–60 °C make it a practical solution for industrial conductive-liquid level monitoring.
Conductive level sensing uses the electrical conductivity of the monitored liquid to determine when it reaches the installed electrodes. When used with a compatible Carlo Gavazzi level-control amplifier or relay, the VPC210 can form part of a system for maximum and minimum level control, including automatic filling and draining applications. The exact control function is determined by the associated amplifier relay and wiring configuration.
The VPC210's two 500 mm AISI 316 stainless steel probes provide flexibility when establishing the required switching levels. The electrodes can be shortened to suit the application, while the PVC housing, screw-terminal connection and 1-inch threaded mounting provide a practical installation format for tanks containing compatible conductive liquids.
| Manufacturer | Carlo Gavazzi |
|---|---|
| Series | VPC |
| Model | VPC210 |
| Product type | Conductive liquid level probe |
| Sensing principle | Conductive |
| Number of electrodes | 2 |
| Electrode material | AISI 316 stainless steel |
| Electrode diameter | 4 mm |
| Electrode length | 500 mm |
| Electrode isolation | Yes |
| Electrode insulation material | Polyethylene |
| Housing material | PVC |
| Mounting | Threaded |
| Pipe thread | 1 inch |
| Electrical connection | Screw terminal |
| Operating temperature | 0–60 °C |
| Maximum pressure | 10 bar |
| Protection rating | IP67 |
| Approvals / marks | CE |
| Barcode / EAN | 5709870048130 |
The VPC210 is a conductive liquid level probe designed for monitoring electrically conductive liquids in tanks, reservoirs and industrial process equipment when used with a compatible level-control amplifier or relay.
The VPC210 has two electrically isolated AISI 316 stainless steel electrodes, each measuring 500 mm long and 4 mm in diameter.
Yes. The standard 500 mm electrodes can be shortened to establish the required sensing levels for a particular tank or process application.
The VPC210 has a 1-inch pipe thread for mounting into a suitable tank or vessel and uses screw terminals for electrical connection.
The VPC210 is specified for an operating temperature range of 0–60 °C and has an IP67 protection rating.
Carlo Gavazzi VPC conductive level probes provide machine builders, panel builders and process engineers with durable stainless steel electrode sensing for reliable monitoring and control of conductive liquids in industrial tanks, reservoirs and process systems.
