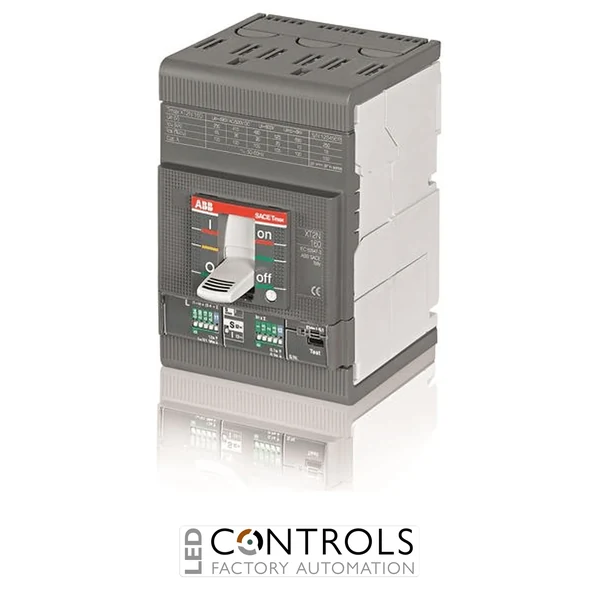

ABB 1SDA067861R1 Tmax XT2H 160 moulded case circuit breaker, a 160 A three pole fixed MCCB with front terminals and Ekip Dip LS/I electronic trip unit for industrial and commercial circuit protection.
£870.42
The ABB 1SDA067861R1 is a high-performance Tmax XT2H 160 moulded case circuit breaker designed for dependable protection of industrial and commercial electrical distribution systems. As part of the trusted ABB SACE Tmax XT circuit breaker range, it provides robust overload and short-circuit protection in a compact three-pole fixed format.
This circuit breaker is equipped with an Ekip Dip LS/I electronic trip unit, providing accurate long-time and instantaneous protection functions for AC applications. Its solid-state release technology supports reliable protection performance, helping safeguard electrical equipment, machinery and downstream circuits against damaging fault conditions.
With a rated current of 160 A and a high breaking capacity of 70 kA at 415 V AC, the ABB 1SDA067861R1 is ideal for demanding installations where dependable circuit protection is essential. Its three-pole fixed design with front terminals allows straightforward installation inside switchboards, control panels and distribution assemblies.
Moulded case circuit breakers such as the ABB Tmax XT2H provide essential protection against overloads and short circuits in low-voltage electrical systems. By disconnecting circuits safely during fault conditions, they help protect cables, equipment, control panels and connected machinery from damage.
The ABB 1SDA067861R1 combines compact construction with advanced electronic protection, making it suitable for modern switchgear assemblies and industrial control panels. Its Ekip Dip LS/I trip unit provides dependable protection performance for installations requiring precision, reliability and high fault interruption capability.
| Current | 160 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | ABB |
| Series | SACE Tmax XT |
| Model | XT2H 160 Ekip Dip LS/I In=160A 3p F F |
| Product ID | 1SDA067861R1 |
| Product type | Moulded case circuit breaker |
| Rated current | 160 A |
| Number of poles | 3-pole |
| Trip unit | Ekip Dip LS/I electronic release |
| Breaking capacity | 70 kA at 415 V AC |
| Rated operational voltage | 690 V AC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Frequency | 50 / 60 Hz |
| Mounting type | Fixed |
| Terminal connection | Front terminals |
| Dimensions (H × W × D) | approx. 130 × 90 × 82.5 mm |
| Weight | approx. 1.4 kg |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
The ABB 1SDA067861R1 is used to provide overload and short-circuit protection in industrial and commercial low-voltage electrical distribution systems.
This Tmax XT2H circuit breaker has a rated current of 160 A.
The circuit breaker has a three-pole configuration, making it suitable for three-phase electrical systems.
It is fitted with an Ekip Dip LS/I electronic trip unit, providing long-time and instantaneous protection functions.
It is typically installed in switchboards, control panels, distribution boards and industrial electrical assemblies.
ABB Tmax XT moulded case circuit breakers are widely used by panel builders, electrical contractors and industrial engineers for reliable low-voltage circuit protection in demanding applications.
