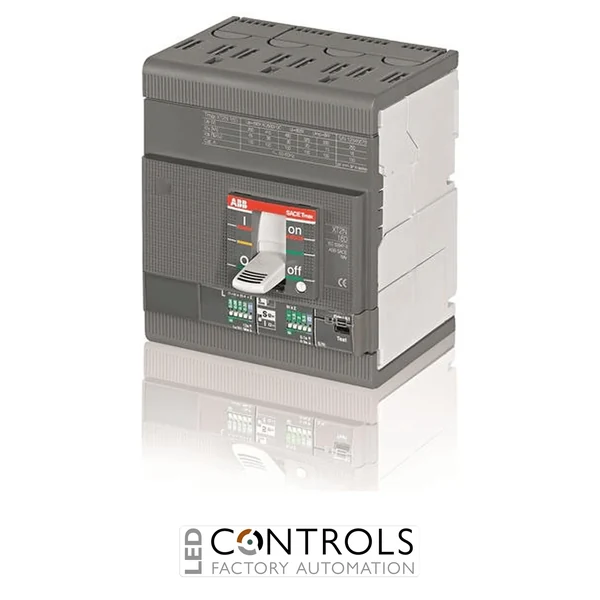

ABB 1SDA067892R1 Tmax XT2H 160 moulded case circuit breaker, a 63 A four pole fixed MCCB with front terminals and Ekip Dip LS/I electronic trip unit for industrial and commercial low-voltage circuit protection.
£1,018.25
The ABB 1SDA067892R1 is a high-performance Tmax XT2H 160 moulded case circuit breaker designed for reliable protection of industrial and commercial low-voltage electrical distribution systems. As part of the ABB SACE Tmax XT circuit breaker range, it provides dependable overload and short-circuit protection in a compact four-pole fixed configuration.
This circuit breaker is equipped with an Ekip Dip LS/I electronic trip unit, offering accurate long-time and instantaneous protection functions for AC applications. Its solid-state release technology helps provide consistent protection performance, making it suitable for switchboards, control panels, machinery feeders and distribution assemblies.
With a rated current of 63 A and a high breaking capacity of 70 kA at 415 V AC, the ABB 1SDA067892R1 is ideal for installations requiring compact, reliable and high-performance circuit protection. The four-pole fixed design with front terminals supports straightforward installation in modern electrical panels and switchgear systems.
Moulded case circuit breakers such as the ABB Tmax XT2H are used to protect low-voltage electrical circuits against overloads and short circuits. By disconnecting the supply during abnormal fault conditions, they help prevent equipment damage, cable overheating and disruption to downstream electrical systems.
The ABB 1SDA067892R1 combines compact construction with advanced electronic protection, making it suitable for panel builders, electrical contractors and industrial engineers. Its four-pole arrangement is particularly useful where neutral protection or complete circuit isolation is required within three-phase distribution systems.
| Current | 63 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | ABB |
| Series | SACE Tmax XT |
| Model | XT2H 160 Ekip Dip LS/I In=63A 4p F F |
| Product ID | 1SDA067892R1 |
| Product type | Moulded case circuit breaker |
| Rated current | 63 A |
| Number of poles | 4-pole |
| Trip unit | Ekip Dip LS/I electronic release |
| Breaking capacity | 70 kA at 415 V AC |
| Rated operational voltage | 690 V AC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Frequency | 50 / 60 Hz |
| Mounting type | Fixed |
| Terminal connection | Front terminals |
| EAN | 8015644017880 |
| Dimensions (H × W × D) | approx. 130 × 120 × 82.5 mm |
| Weight | approx. 1.8 kg |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
The ABB 1SDA067892R1 is used to provide overload and short-circuit protection in low-voltage industrial and commercial electrical distribution systems.
This Tmax XT2H circuit breaker has a rated current of 63 A.
The circuit breaker has a four-pole configuration, making it suitable for applications requiring three-phase and neutral protection or isolation.
It is fitted with an Ekip Dip LS/I electronic trip unit, providing long-time and instantaneous protection functions.
It is typically installed in switchboards, distribution panels, control panels and industrial electrical assemblies.
ABB Tmax XT moulded case circuit breakers are widely used by panel builders, electrical contractors and industrial engineers for reliable low-voltage protection in demanding electrical installations.
