Why Choose the ABB 2CDS381001R0204 Miniature Circuit Breaker?

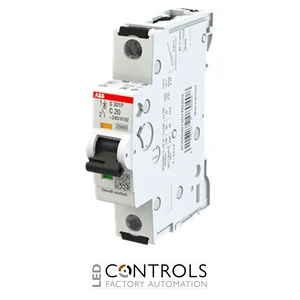

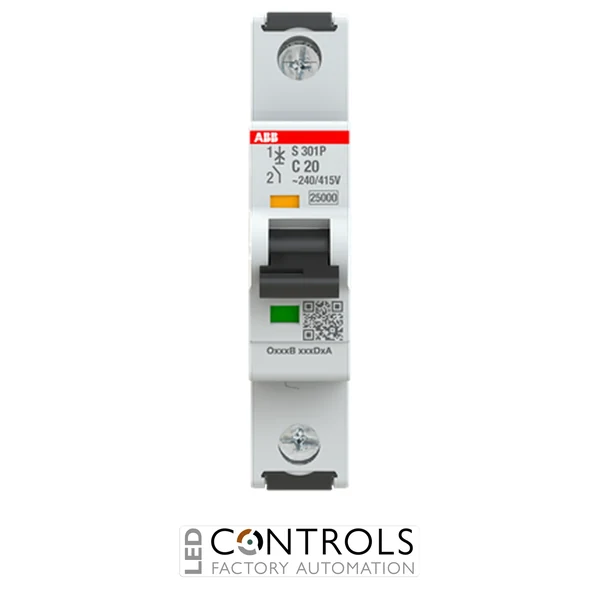

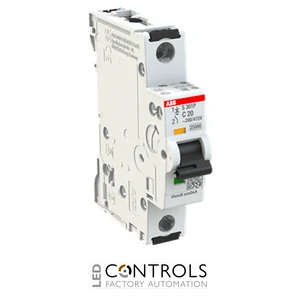

The ABB 2CDS381001R0204, also known as the S301P-C20, is a high-performance single-pole miniature circuit breaker (MCB) from the ABB System pro M compact S300P series. It is designed to protect industrial and commercial electrical installations against overloads and short circuits while providing the high fault-interruption capability required in demanding applications.
The S301P-C20 combines thermal overload protection with electromagnetic short-circuit protection. Its Type C tripping characteristic accommodates moderate starting currents, making it suitable for circuits supplying equipment such as small motors, transformers, fluorescent lighting and industrial control devices.
With a 20 A rated current, a compact single-pole configuration and a short-circuit breaking capacity of up to 25 kA, the ABB 2CDS381001R0204 provides dependable protection without occupying unnecessary panel space. Tool-free DIN rail mounting, a front-facing trip indicator and compatibility with System pro M compact accessories further simplify installation and maintenance.
Key Advantages
- 20 A circuit protection for industrial and commercial installations.
- Type C tripping characteristic accommodates moderate equipment inrush currents.
- 25 kA breaking capacity for installations with high prospective fault currents.
- Front-facing trip indication helps distinguish fault operation from manual switching.
- Compact single-module format conserves distribution-board and control-panel space.
- DIN rail mounting supports fast installation, removal and maintenance.
Key Features
- ABB System pro M compact S300P series.
- S301P-C20 model designation.
- 20 A rated current.
- Single-pole (1P) configuration.
- Type C tripping characteristic.
- 25 kA rated ultimate short-circuit breaking capacity.
- Thermal and electromagnetic tripping mechanisms.
- Patented screw-terminal design with pressure plate.
- Integrated front trip indicator.
- Compatible with ABB System pro M compact accessories.
Reliable Type C Protection for Equipment Circuits
The ABB S301P-C20 automatically disconnects the protected circuit when it detects a sustained overload or a high short-circuit current. Its thermal element responds to prolonged overcurrent conditions, while its electromagnetic mechanism provides rapid interruption during short circuits.
A Type C miniature circuit breaker is designed to tolerate higher temporary starting currents than a Type B device. This helps reduce nuisance tripping when energising equipment with moderate inrush currents while maintaining dependable protection for cables, machinery and connected electrical devices.
Typical Applications
- Industrial control panels.
- Commercial distribution boards.
- Small motors and motor-control circuits.
- Transformers and power supplies.
- Fluorescent and LED lighting circuits.
- HVAC and building-services equipment.
- OEM machinery and automation systems.
- General-purpose industrial electrical circuits.
