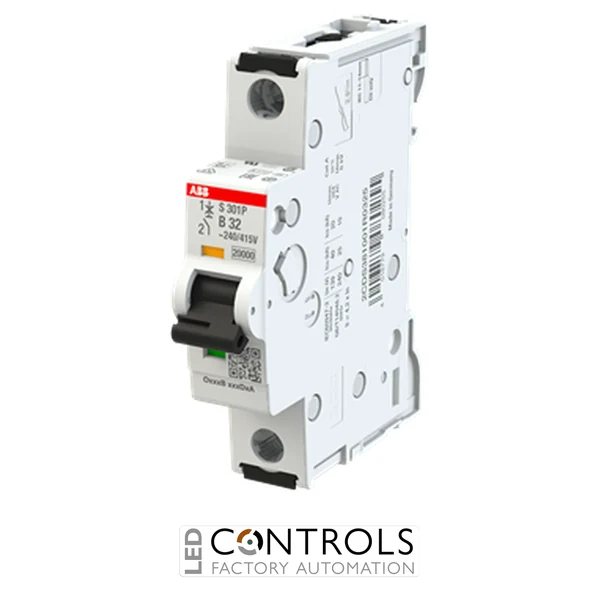

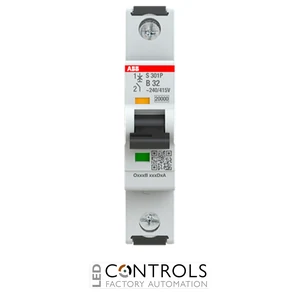

ABB S301P-B32 single-pole miniature circuit breaker with a 32 A rating, Type B tripping characteristic and 25 kA breaking capacity.
£39.75
The ABB 2CDS381001R0325, also known as the S301P-B32, is a premium single-pole miniature circuit breaker (MCB) from the ABB System pro M compact S300P series. It is engineered to provide dependable protection against overloads and short circuits in industrial and commercial electrical installations whilst meeting internationally recognised IEC, UL and CSA standards.
Featuring a Type B tripping characteristic, the S301P-B32 is designed for circuits with predominantly resistive loads or low inrush currents, including lighting, heating systems, socket outlet circuits, distribution boards and control panels. Its fast magnetic response ensures rapid disconnection during fault conditions, helping to safeguard both equipment and wiring.
With a 32 A rated current, a compact single-pole design and a 25 kA rated short-circuit breaking capacity, the ABB S301P-B32 delivers outstanding protection while occupying only one DIN rail module, making it ideal for space-efficient electrical installations.
The ABB S301P-B32 combines thermal overload protection with electromagnetic short-circuit protection to safeguard electrical circuits against faults. Its Type B characteristic provides magnetic tripping between approximately three and five times the rated current, making it particularly suitable for circuits supplying resistive loads and equipment with low inrush currents.
Its compact modular construction, integrated trip indication and fail-safe terminals allow fast installation and dependable long-term operation in commercial buildings, industrial switchboards and OEM equipment.
| Current | 32 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Model | S301P-B32 |
| Product ID | 2CDS381001R0325 |
| EAN | 4016779080255 |
| Product type | Miniature Circuit Breaker |
| Rated current | 32 A |
| Number of poles | 1 |
| Protected poles | 1 |
| Tripping characteristic | Type B |
| Magnetic tripping range | 3–5 × rated current |
| Rated operational voltage | 240/415 V AC |
| Maximum operating voltage (UL/CSA) | 480Y/277 V AC, 125 V DC |
| Frequency | 50/60 Hz |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Ultimate short-circuit breaking capacity (Icu) | 25 kA |
| Service short-circuit breaking capacity (Ics) | 12.5 kA |
| Protection rating | IP20 (IP40 when installed in an enclosure) |
| Mounting | 35 mm DIN rail |
| Dimensions (H × W × D) | 88 × 17.5 × 67.6 mm |
| Weight | Approx. 0.124 kg |
| Operating temperature | -40 °C to +70 °C |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA C22.2 No. 235 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
It protects electrical circuits against overloads and short circuits, particularly those supplying resistive loads and equipment with low inrush currents.
The ABB S301P-B32 has a rated current of 32 A.
Type B circuit breakers trip magnetically at approximately three to five times their rated current, making them ideal for lighting, heating and other resistive electrical loads.
The ABB S301P-B32 provides an ultimate short-circuit breaking capacity of 25 kA.
It clips directly onto a standard 35 mm DIN rail and uses ABB's fail-safe terminal design for secure installation.
The breaker complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 and CSA C22.2 No. 235.
ABB System pro M compact S300P miniature circuit breakers are trusted by electrical contractors, panel builders and OEM manufacturers worldwide for dependable circuit protection, high breaking capacities and long-term reliability.
