Why Choose the ABB S301P-Z6 Miniature Circuit Breaker?

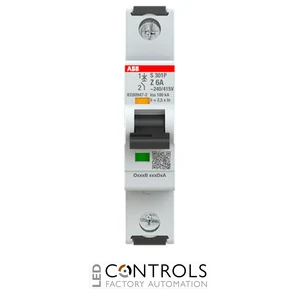

The ABB S301P-Z6 (2CDS381001R0378) is a premium single-pole miniature circuit breaker (MCB) engineered to provide reliable protection against overloads and short circuits in industrial electrical installations. As part of the robust ABB S300P series, it is manufactured to international IEC and UL standards, making it ideal for demanding industrial, commercial and OEM applications.
Featuring a Z tripping characteristic, this circuit breaker is specifically designed to protect sensitive electronic equipment, control circuits and instrumentation where rapid magnetic tripping at relatively low fault currents is required. Its compact construction and dependable switching performance help maximise system reliability while minimising downtime.
With a 6 A rated current, single-pole configuration and DIN rail mounting, the S301P-Z6 is well suited to industrial control panels, PLC systems, automation equipment and specialist electrical installations requiring high-performance circuit protection.
Key Advantages
- Compact single-pole miniature circuit breaker for industrial installations.
- 6 A rated current with Z tripping characteristic.
- Fast protection for sensitive electronic and control circuits.
- Reliable overload and short-circuit protection.
- High breaking capacity for demanding applications.
- Quick DIN rail installation simplifies panel assembly.
Key Features
- ABB S300P miniature circuit breaker series.
- 6 A rated current.
- Z tripping characteristic.
- Single-pole (1P) configuration.
- Rated operational voltage up to 230/400 V AC.
- 25 kA breaking capacity according to IEC/EN 60947-2.
- Thermal overload and magnetic short-circuit protection.
- DIN rail mounting.
- IP20 terminal protection.
- Compact 17.5 mm module width.
Reliable Protection for Sensitive Electrical Equipment
Miniature circuit breakers automatically disconnect electrical circuits whenever overloads or short circuits occur, helping to protect wiring, electrical equipment and connected machinery from damage. The Z characteristic is particularly suitable for electronic equipment, instrumentation and control systems that require rapid fault clearance.
The ABB S300P range is widely specified by industrial engineers, panel builders and machine manufacturers thanks to its robust construction, high breaking capacity and dependable long-term performance in demanding industrial environments.
Typical Applications
- Industrial automation systems.
- PLC and control panels.
- Electronic instrumentation.
- Machine building and OEM equipment.
- Commercial electrical installations.
- Industrial power distribution systems.
