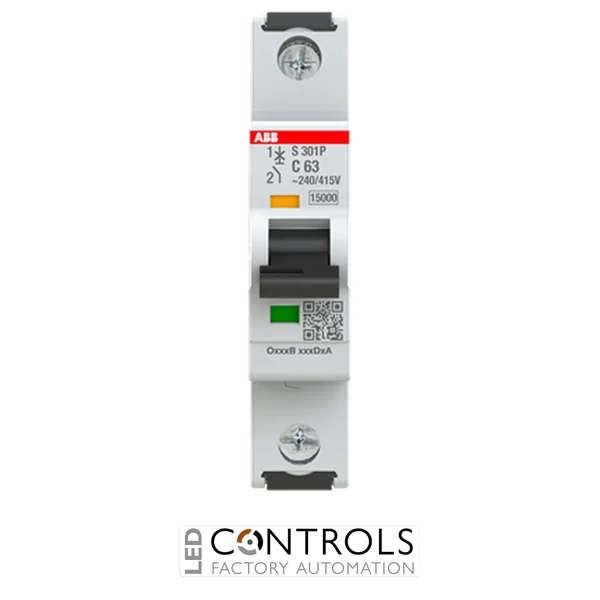

ABB 2CDS381001R0634 S301P-C63 single-pole miniature circuit breaker with a 63 A rated current, Type C tripping characteristic and 15 kA breaking capacity at 400 V AC for industrial circuit protection.
£49.94
The ABB 2CDS381001R0634, also known as the ABB S301P-C63, is a high-performance miniature circuit breaker (MCB) designed to protect industrial electrical installations against overloads and short circuits. As part of the ABB System pro M compact S300P series, it combines high fault-breaking performance with compact dimensions and reliable operation.
This single-pole circuit breaker uses thermal and electromagnetic tripping mechanisms to provide effective protection for cables, machinery and connected equipment. An integrated trip indicator supports rapid fault identification, while the dual DIN rail release and fail-safe terminals help simplify installation and maintenance.
With a rated current of 63 A and a Type C tripping characteristic, the ABB 2CDS381001R0634 is suitable for general industrial and commercial circuits with moderate inrush currents. Its short-circuit breaking capacity is rated at 15 kA at 400 V AC under IEC/EN 60947-2, with ratings of up to 25 kA at lower operating voltages.
The ABB S301P-C63 automatically disconnects an electrical circuit when a sustained overload or short circuit occurs. This helps protect cables, distribution equipment and connected machinery while reducing the risk of electrical damage, fire and unplanned downtime.
Its Type C tripping characteristic is designed to accommodate the moderate starting currents produced by equipment such as small motors, lighting systems and transformers. This provides a practical balance between dependable fault protection and resistance to unnecessary tripping.
| Current | 63 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Extended product type | S301P-C63 |
| Model | 2CDS381001R0634 |
| Product type | Miniature Circuit Breaker (MCB) |
| Number of poles | 1 |
| Number of protected poles | 1 |
| Rated current | 63 A |
| Tripping characteristic | Type C |
| Rated operational voltage | Up to 415 V AC / 125 V DC |
| Rated frequency | 50 / 60 Hz |
| Breaking capacity at 400 V AC | 15 kA |
| Maximum breaking capacity | Up to 25 kA, depending on operating voltage |
| Rated insulation voltage | 500 V |
| Impulse withstand voltage | 6 kV |
| Protection rating | IP20; up to IP40 when installed in a suitable enclosure |
| Mounting type | 35 mm DIN rail |
| Overvoltage category | IV |
| Pollution degree | 3 |
| Dimensions (H × W × D) | approx. 88 × 17.5 × 67.6 mm |
| EAN | 4016779079945 |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 and CSA 22.2 No. 235 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
It protects industrial and commercial electrical circuits against overloads and short circuits, including circuits supplying lighting, small motors, transformers and machinery.
The ABB S301P-C63 has a rated current of 63 A.
A Type C circuit breaker is designed for circuits with moderate starting currents and typically provides suitable protection for lighting systems, small motors, transformers and general industrial equipment.
The circuit breaker has a rated breaking capacity of 15 kA at 400 V AC under IEC/EN 60947-2, with breaking capacities of up to 25 kA at lower operating voltages.
The single-pole circuit breaker is designed for mounting on a standard 35 mm DIN rail inside an electrical control panel, switchboard or distribution enclosure.
ABB System pro M compact miniature circuit breakers are widely specified by electrical engineers, panel builders and machine manufacturers for dependable protection, high fault-breaking performance and straightforward integration into modern electrical systems.
