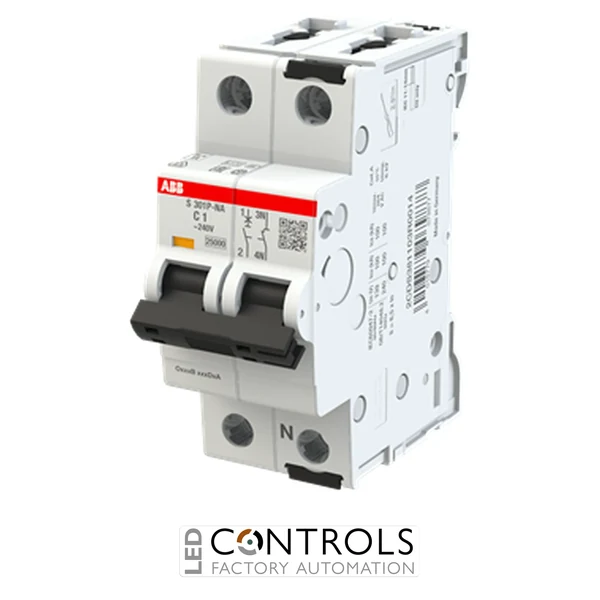

ABB 2CDS381103R0014 S301P-C1NA miniature circuit breaker with switched neutral, 1 A rated current, Type C tripping characteristic and 25 kA breaking capacity for industrial electrical protection.
£87.76
The ABB 2CDS381103R0014, also known as the ABB S301P-C1NA, is a high-performance miniature circuit breaker with switched neutral (1P+N) from the renowned ABB System pro M compact S300P series. Designed for demanding industrial and commercial installations, it provides dependable protection against overloads and short circuits whilst switching both the live and neutral conductors.
Engineered to international IEC and UL standards, the S301P-C1NA incorporates ABB's advanced thermal and magnetic tripping technology, an integrated trip indicator and fail-safe terminals for secure installation. The compact modular construction enables fast DIN rail mounting whilst maintaining excellent electrical performance.
With a 1 A rated current, a Type C tripping characteristic and a 25 kA breaking capacity, the ABB 2CDS381103R0014 is ideally suited for protecting control circuits, instrumentation, automation systems and other low-current applications requiring simultaneous neutral switching.
The ABB S301P-C1NA provides dependable protection against overloads and short circuits whilst switching both the phase and neutral conductors. This improves circuit isolation during maintenance and enhances safety for industrial and commercial electrical installations.
Its Type C tripping characteristic makes it particularly suitable for control systems, automation equipment, instrumentation and other applications where moderate inrush currents are expected whilst maintaining excellent protection for connected equipment.
| Current | 1 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Extended product type | S301P-C1NA |
| Model | 2CDS381103R0014 |
| Product type | Miniature Circuit Breaker (MCB) |
| Configuration | 1P+N (1 protected pole + switched neutral) |
| Rated current | 1 A |
| Tripping characteristic | Type C |
| Rated operational voltage | 415 V AC / 125 V DC |
| Rated frequency | 50 / 60 Hz |
| Breaking capacity | 25 kA |
| Rated insulation voltage | 500 V |
| Impulse withstand voltage | 6 kV |
| Protection rating | IP20 (IP40 when installed in a suitable enclosure) |
| Mounting type | 35 mm DIN rail |
| Dimensions (H × W × D) | Approx. 88 × 17.5 × 69 mm |
| Weight | Approx. 0.248 kg |
| EAN | 4016779079877 |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
It protects low-current industrial and commercial electrical circuits against overloads and short circuits whilst switching both the live and neutral conductors.
The ABB S301P-C1NA has a 1 A rated current.
Type C circuit breakers are suitable for circuits with moderate inrush currents, making them ideal for industrial control systems, automation equipment and general-purpose installations.
The ABB 2CDS381103R0014 has a 25 kA breaking capacity, providing excellent protection against high prospective fault currents.
The circuit breaker is designed for installation onto a standard 35 mm DIN rail inside electrical distribution boards and industrial control panels.
ABB System pro M compact miniature circuit breakers are trusted worldwide by electrical engineers, machine builders and panel manufacturers for their outstanding reliability, high fault-breaking capability and compliance with international standards.
