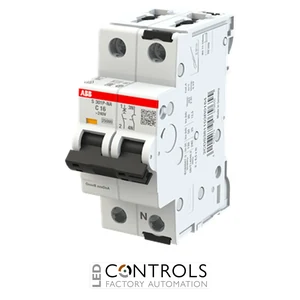

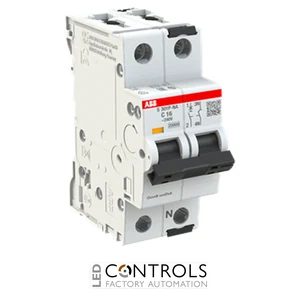

Why Choose the ABB 2CDS381103R0164 S301P-C16NA Miniature Circuit Breaker?
The ABB 2CDS381103R0164, also known as the S301P-C16NA, is a premium miniature circuit breaker (MCB) designed to provide reliable protection against overloads and short circuits in industrial and commercial electrical installations. As part of the trusted ABB System pro M compact S300P series, it is manufactured to international IEC and UL standards, making it suitable for demanding applications where dependable circuit protection is essential.
Featuring a 16 A rated current, a Type C tripping characteristic and a high 25 kA short-circuit breaking capacity, this circuit breaker is ideal for protecting circuits supplying motors, transformers, lighting systems and industrial control equipment with moderate inrush currents.
With a 1P+N pole configuration, 240 V AC rated operational voltage and a compact DIN rail mounting design, the S301P-C16NA offers simple installation inside electrical distribution boards and automation control panels. Its fail-safe terminals and clear switching indication further improve installation safety and maintenance efficiency.
Key Advantages
- High-performance miniature circuit breaker for industrial protection.
- 16 A rated current for industrial and commercial circuits.
- Type C tripping characteristic suitable for moderate inrush current applications.
- 25 kA short-circuit breaking capacity.
- 1P+N pole configuration for phase and neutral switching.
- Reliable protection against overloads and short circuits.
- Compact DIN rail mounted design.
- Compatible with ABB System pro M compact accessories.
Key Features
- ABB System pro M compact S300P series.
- S301P-C16NA miniature circuit breaker.
- 16 A rated current.
- Type C tripping curve.
- 25 kA breaking capacity.
- 1P+N pole configuration.
- 240 V AC rated operational voltage.
- 50 / 60 Hz operation.
- Fail-safe screw terminals.
- DIN rail mounting.
Reliable Circuit Protection for Industrial Installations
The ABB S301P-C16NA automatically disconnects electrical circuits during overload and short-circuit conditions, helping to protect wiring, machinery and connected equipment from damage. Its Type C characteristic provides dependable protection for circuits with moderate starting currents commonly found in industrial environments.
Manufactured to international standards and offering a high breaking capacity, the S300P series is trusted by machine builders, panel manufacturers and industrial maintenance engineers who require long-term electrical protection and operational reliability.
Typical Applications
- Industrial distribution boards.
- Machine control panels.
- Motor control circuits.
- Commercial electrical installations.
- Automation systems.
- Lighting and power distribution.
- OEM machinery.
- Infrastructure and utility installations.
