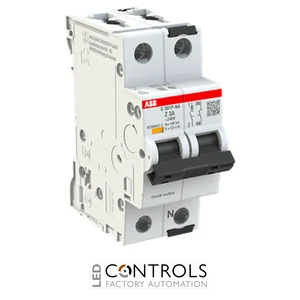

ABB S301P-Z3NA miniature circuit breaker with 3 A rated current, Type Z tripping characteristic, 1P+N configuration and 25 kA breaking capacity for sensitive electronic circuit protection.
£122.79
The ABB 2CDS381103R0318, also known as the S301P-Z3NA, is a premium miniature circuit breaker (MCB) designed to provide highly sensitive protection against overloads and short circuits in industrial and commercial electrical installations. As part of the proven ABB System pro M compact S300P series, it combines exceptional fault-breaking performance with compact dimensions and full compliance with international IEC, EN and UL standards.
Featuring a 3 A rated current, a Type Z tripping characteristic and a high 25 kA short-circuit breaking capacity, the S301P-Z3NA is specifically engineered to protect sensitive electronic equipment, PLCs, instrumentation, semiconductor devices and low-current control circuits. Its ultra-fast magnetic trip characteristic helps minimise fault energy, reducing the risk of damage to delicate electrical components.
The 1P+N configuration simultaneously switches both the phase and neutral conductors, while its DIN rail mounting, fail-safe bi-directional screw terminals and integrated trip indication make installation and maintenance simple within industrial control panels and electrical distribution systems.
The ABB S301P-Z3NA automatically disconnects electrical circuits whenever overload or short-circuit conditions occur, helping protect valuable electronic equipment against costly damage. Its Type Z magnetic release operates significantly faster than conventional circuit breakers, making it particularly suitable for semiconductor devices, PLCs, instrumentation and precision control systems.
Widely specified by OEM machine builders, industrial panel manufacturers and automation engineers, the ABB S300P range delivers dependable circuit protection, excellent durability and long operational life for demanding industrial environments.
| Current | 3 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Model | S301P-Z3NA |
| Product ID | 2CDS381103R0318 |
| EAN | 4016779079501 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 3 A |
| Tripping characteristic | Type Z |
| Number of poles | 1P+N |
| Neutral position | Right |
| Rated operational voltage | 240 V AC |
| Rated DC voltage | 72 V DC |
| Frequency | 50 / 60 Hz |
| Rated ultimate short-circuit breaking capacity | 25 kA |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Protection rating | IP20 (IP40 when installed in a suitable enclosure) |
| Mounting type | DIN rail mounting |
| Terminal capacity | 0.75–35 mm² solid, 0.75–25 mm² stranded |
| Operating temperature | -40°C to +70°C |
| Dimensions (H × W × D) | Approximately 88 × 35 × 69 mm |
| Weight | Approximately 0.248 kg |
| Country of origin | Germany |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S301P-Z3NA protects highly sensitive electronic circuits against overloads and short circuits in industrial and commercial installations.
The ABB S301P-Z3NA has a rated current of 3 A.
Type Z circuit breakers provide an extremely fast magnetic trip response, making them ideal for protecting PLCs, semiconductor devices, instrumentation and other sensitive electronic equipment.
The ABB S301P-Z3NA provides a high 25 kA short-circuit breaking capacity for demanding industrial applications.
The circuit breaker mounts directly onto a standard DIN rail inside electrical distribution boards and industrial control panels.
ABB System pro M compact S300P miniature circuit breakers are trusted worldwide for delivering dependable overload and short-circuit protection in industrial automation, electronic control systems and critical electrical installations.
