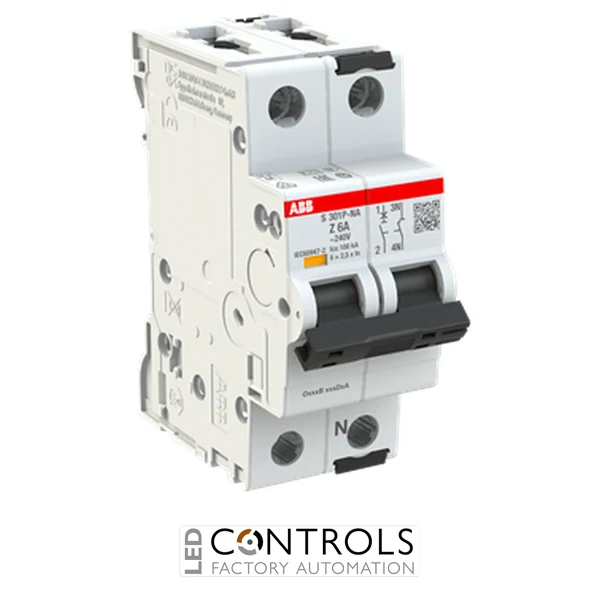

ABB 2CDS381103R0378 S301P-Z6NA miniature circuit breaker with a 6 A rating, Type Z tripping characteristic, 1P+N configuration and high short-circuit breaking capacity for sensitive industrial circuits.
£100.91
The ABB 2CDS381103R0378, also identified as the S301P-Z6NA, is a high-performance miniature circuit breaker (MCB) designed to protect sensitive industrial electrical circuits against overloads and short circuits. It forms part of the reliable ABB System pro M Compact S300P series.
Manufactured for demanding industrial installations, this circuit breaker combines a high short-circuit interruption capability with a sensitive Type Z tripping characteristic. Its integrated trip indication supports rapid fault identification, while fail-safe terminals and a dual DIN rail release help simplify installation and maintenance.
With a rated current of 6 A, a 1P+N configuration and a 240 V AC rated voltage, the ABB 2CDS381103R0378 is particularly suitable for electronic equipment, control circuits, instrumentation and automation systems that require rapid disconnection at relatively low fault-current levels.
Miniature circuit breakers automatically disconnect an electrical supply when an overload or short circuit is detected. A Type Z characteristic provides particularly sensitive magnetic operation, making this breaker suitable for electronic devices and control equipment that may be damaged by comparatively low fault currents.
The ABB S300P series is engineered for industrial installations requiring dependable protection, high breaking capacity and compliance with recognised international standards. Its modular design enables straightforward integration into distribution boards, machinery panels and automation enclosures.
| Current | 6 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S300P |
| Model | 2CDS381103R0378 |
| Extended product type | S301P-Z6NA |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 6 A |
| Tripping characteristic | Type Z |
| Number of poles | 1P+N |
| Number of protected poles | 1 |
| Rated voltage | 240 V AC |
| Rated insulation voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Breaking capacity | up to 100 kA at 230 V AC according to IEC 60947-2 |
| Mounting type | DIN rail |
| Terminal type | Screw terminals |
| Protection rating | IP20; up to IP40 when installed in a suitable enclosure |
| Width | 35 mm |
| Height | 88 mm |
| Depth | 69 mm |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
It is used to protect sensitive industrial electrical circuits, electronic equipment and automation systems against overloads and short circuits.
The ABB 2CDS381103R0378 has a rated current of 6 A.
A Type Z characteristic provides rapid magnetic tripping at relatively low fault-current levels, making it suitable for sensitive electronic and control equipment.
The 1P+N configuration includes one protected phase pole and a switched neutral pole, allowing both conductors to be disconnected together.
The breaker provides a short-circuit breaking capacity of up to 100 kA at 230 V AC when assessed according to IEC 60947-2.
ABB System pro M Compact S300P miniature circuit breakers are trusted by electrical engineers, panel builders and automation specialists for dependable protection, high fault interruption capability and reliable performance in demanding industrial installations.
