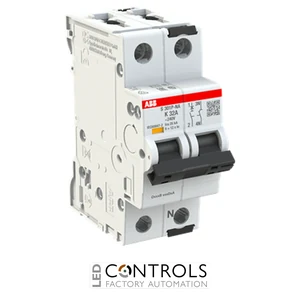

ABB 2CDS381103R0537 S301P-K32NA miniature circuit breaker featuring a 32 A rating, Type K tripping characteristic, 1P+N configuration and 25 kA breaking capacity.
£105.92
The ABB 2CDS381103R0537, also designated the S301P-K32NA, is a high-performance miniature circuit breaker (MCB) from the proven ABB System pro M Compact S300P series. Designed specifically for industrial electrical installations, it provides dependable protection against overloads and short circuits whilst ensuring reliable operation in demanding environments.
Manufactured to international IEC, UL and CSA standards, the S301P-K32NA features ABB's patented fail-safe terminal technology, clear trip indication and compact DIN rail mounting. It combines high interruption performance with straightforward installation, making it ideal for industrial control panels, machinery and power distribution systems.
With a 32 A rated current, a Type K tripping characteristic, a 1P+N configuration and a 25 kA breaking capacity, the ABB 2CDS381103R0537 is particularly suited to motors, transformers, solenoids and other inductive loads that generate high inrush currents.
Type K miniature circuit breakers are specifically designed for circuits supplying motors, transformers, contactors and other inductive equipment that draw high inrush currents during start-up. Their magnetic tripping characteristic allows higher temporary starting currents whilst still providing rapid protection against genuine short-circuit faults.
The ABB S301P-K32NA combines this specialised protection with ABB's high-performance S300P platform, delivering excellent interruption capability, dependable long-term reliability and reduced nuisance tripping in demanding industrial applications.
| Current | 32 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S300P |
| Product ID | 2CDS381103R0537 |
| Extended product type | S301P-K32NA |
| Product type | Miniature circuit breaker (MCB) |
| EAN | 4016779079242 |
| Rated current | 32 A |
| Tripping characteristic | Type K |
| Pole configuration | 1P+N |
| Protected poles | 1 |
| Rated operating voltage | 240 V AC |
| Maximum operating voltage | 480Y / 277 V AC |
| Rated DC voltage | 72 V DC |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Ultimate short-circuit breaking capacity (Icu) | 25 kA |
| Service short-circuit breaking capacity (Ics) | 10 kA |
| Rated frequency | 50/60 Hz |
| Protection rating | IP20 (IP40 when installed within a suitable enclosure) |
| Mounting method | DIN rail |
| Terminal type | Screw terminals |
| Dimensions (H × W × D) | Approx. 88 × 35 × 69 mm |
| Weight | Approx. 0.248 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
It protects industrial electrical circuits against overloads and short circuits, particularly motors, transformers, contactors and other inductive equipment with high starting currents.
The ABB S301P-K32NA has a 32 A rated current.
Type K circuit breakers are designed for inductive loads with elevated inrush currents, providing dependable motor protection whilst helping to prevent nuisance tripping during equipment start-up.
The breaker protects the phase conductor whilst simultaneously switching the neutral conductor, providing improved circuit isolation during maintenance and fault conditions.
The ABB 2CDS381103R0537 provides an ultimate short-circuit breaking capacity of 25 kA.
Yes. It is designed for quick installation onto a standard DIN rail within industrial control panels and electrical distribution boards.
ABB System pro M Compact miniature circuit breakers are trusted by electrical engineers, machine builders, panel manufacturers and OEMs worldwide for their high interruption capacity, dependable operation and long service life in demanding industrial applications.
