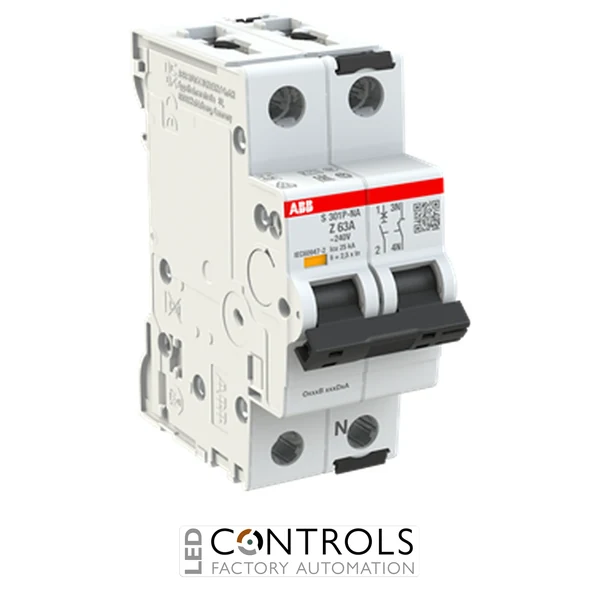

ABB S301P-Z63NA miniature circuit breaker with a 63 A rated current, Z tripping characteristic and 1P+N configuration for industrial overload and short-circuit protection.
£136.01
The ABB 2CDS381103R0608, also identified as the S301P-Z63NA, is a high-performance miniature circuit breaker (MCB) designed to protect industrial electrical installations against overloads and short circuits. As part of the advanced ABB System pro M compact S300P series, it provides dependable circuit protection for applications where rapid fault disconnection and high breaking capacity are required.
This circuit breaker combines a compact modular design with robust electrical performance, making it suitable for distribution boards, control panels and machinery installations. Its Z tripping characteristic provides fast magnetic operation, helping protect sensitive electronic equipment and circuits with low permissible fault currents.
With a rated current of 63 A, a 240 V AC rated voltage and a 1P+N configuration, the S301P-Z63NA delivers reliable protection while simultaneously switching the neutral conductor. Its DIN rail mounting format, fail-safe terminals and integrated trip indication support efficient installation, inspection and maintenance.
Miniature circuit breakers automatically disconnect a circuit when excessive current is detected. This protects electrical conductors and connected equipment from overheating, insulation damage and potentially hazardous short-circuit conditions.
The Z tripping characteristic is designed to operate rapidly at comparatively low fault-current multiples. This makes the ABB S301P-Z63NA particularly suitable for electronic equipment, semiconductor devices, control circuits and other sensitive loads that require faster magnetic protection than conventional B, C or D characteristic breakers.
| Current | 63 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Model | S301P-Z63NA |
| Product ID | 2CDS381103R0608 |
| EAN | 4016779079174 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 63 A |
| Tripping characteristic | Z |
| Number of poles | 1P+N |
| Number of protected poles | 1 |
| Rated AC voltage | 240 V AC |
| Rated DC voltage | 72 V DC |
| Rated insulation voltage | 500 V |
| Impulse withstand voltage | 6 kV |
| Frequency | 50 / 60 Hz |
| Protection rating | IP20, IP40 when installed in a suitable enclosure |
| Mounting type | DIN rail |
| Terminal type | Fail-safe screw terminals |
| Dimensions (H × W × D) | approx. 88 × 17.5 × 69 mm |
| Weight | approx. 0.12 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
This miniature circuit breaker protects industrial electrical circuits against overloads and short circuits, particularly where sensitive equipment requires rapid fault disconnection.
The ABB S301P-Z63NA has a rated current of 63 A.
A Z characteristic provides rapid magnetic tripping at relatively low fault-current levels, making the breaker suitable for sensitive electronic equipment and control circuits.
The 1P+N configuration protects the phase conductor while simultaneously switching the neutral conductor when the circuit breaker operates.
The circuit breaker is designed for installation on a standard DIN rail inside an electrical distribution board, control panel or machinery enclosure.
ABB System pro M compact S300P miniature circuit breakers are used by electrical engineers, panel builders and industrial automation specialists to provide reliable overload and short-circuit protection in demanding electrical installations.
