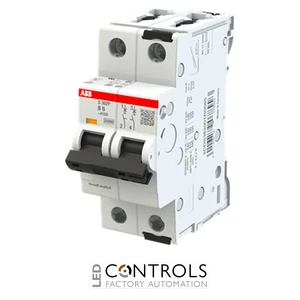

ABB S302P-B6 two-pole miniature circuit breaker with a 6 A rated current, B tripping characteristic and high breaking capacity for industrial overload and short circuit protection.
£80.58
The ABB 2CDS382001R0065, also designated S302P-B6, is a high-performance 2-pole miniature circuit breaker (MCB) from the trusted ABB System pro M compact S300P series. It is engineered to provide dependable overload and short circuit protection for industrial, commercial and OEM electrical installations where high breaking capacity, compact dimensions and reliable operation are essential.
Manufactured in accordance with international IEC and UL standards, the S302P-B6 features a compact DIN rail mounted design, integrated contact and trip indication, and ABB fail-safe terminal technology for secure installation. Its B tripping characteristic provides sensitive magnetic protection for circuits with low inrush currents, making it particularly suitable for resistive loads, lighting systems, control circuits and sensitive electrical equipment.
With a 6 A rated current, 2-pole configuration, 415 V AC rated operating voltage and a breaking capacity of up to 25 kA to IEC/EN 60898-1, the ABB S302P-B6 delivers reliable protection for industrial switchboards, distribution boards and automation systems.
Miniature circuit breakers automatically disconnect electrical circuits when overload or short circuit conditions occur. This helps prevent conductor overheating, insulation damage and equipment failure while supporting safer and more reliable electrical installations.
The B tripping characteristic provides magnetic operation at a lower multiple of the rated current than a C-curve breaker. This makes the S302P-B6 particularly suitable for resistive loads and circuits with limited starting current, including heating equipment, lighting, control systems and general-purpose distribution circuits.
| Current | 6 A |
|---|---|
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Model | S302P-B6 |
| Product ID | 2CDS382001R0065 |
| EAN | 4016779078993 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 6 A |
| Tripping characteristic | B |
| Number of poles | 2 |
| Number of protected poles | 2 |
| Rated operating voltage | 230 / 400 V AC, up to 415 V AC |
| Rated DC voltage | up to 125 V DC |
| Breaking capacity | up to 25 kA to IEC/EN 60898-1 |
| Ultimate breaking capacity | up to 100 kA to IEC/EN 60947-2 |
| Rated insulation voltage | 500 V |
| Impulse withstand voltage | 6 kV |
| Frequency | 50 / 60 Hz |
| Protection rating | IP20, IP40 when installed within a suitable enclosure |
| Mounting type | DIN rail |
| Terminal type | Fail-safe screw terminals |
| Dimensions (H × W × D) | approx. 88 × 35 × 69 mm |
| Weight | approx. 0.25 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
This miniature circuit breaker protects two-pole industrial and commercial electrical circuits against overloads and short circuits.
The ABB S302P-B6 has a rated current of 6 A.
The B characteristic provides sensitive short circuit protection for circuits with low inrush currents, including lighting, heating, control equipment and other predominantly resistive loads.
The two-pole configuration protects and disconnects both connected conductors simultaneously when an overload or short circuit occurs.
The breaker provides a breaking capacity of up to 25 kA to IEC/EN 60898-1 and an ultimate breaking capacity of up to 100 kA to IEC/EN 60947-2, depending on the installation voltage and applicable standard.
ABB System pro M compact S300P miniature circuit breakers are trusted by electricians, panel builders and industrial engineers worldwide for dependable circuit protection, robust construction and consistent long-term performance.
