Why Choose the ABB 2CDS382001R0105 Miniature Circuit Breaker?

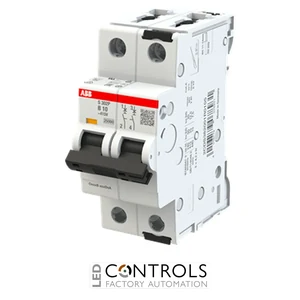

The ABB 2CDS382001R0105, also designated S302P-B10, is a premium 2-pole miniature circuit breaker (MCB) from the trusted ABB System pro M compact S300P series. It is engineered to provide dependable overload and short circuit protection for industrial, commercial and OEM electrical installations where high breaking capacity and long-term reliability are essential.
Manufactured in accordance with international IEC and UL standards, the S302P-B10 features a compact DIN rail mounted design, integrated trip indication and ABB's proven fail-safe terminal technology for secure installation. Its B tripping characteristic makes it particularly suitable for protecting lighting circuits, resistive loads, control circuits and other applications with low inrush currents.
With a 10 A rated current, 2-pole configuration, 415 V AC rated operating voltage and a 25 kA rated breaking capacity, the ABB S302P-B10 delivers reliable protection for industrial switchboards, distribution boards and commercial electrical systems.
Key Advantages
- High-performance miniature circuit breaker for industrial electrical protection.
- 10 A rated current suitable for industrial and commercial applications.
- B tripping characteristic designed for circuits with low inrush currents.
- 25 kA breaking capacity provides outstanding short circuit protection.
- 2-pole configuration disconnects both conductors simultaneously.
- Compact DIN rail mounting with compatibility across the ABB System pro M compact range.
Key Features
- ABB System pro M compact S300P series.
- Extended product type: S302P-B10.
- Manufacturer part number: 2CDS382001R0105.
- 10 A rated current.
- B tripping characteristic.
- 25 kA rated short circuit breaking capacity.
- 2 protected poles.
- Integrated trip position indication.
- Fail-safe screw terminals.
- Suitable for 50 / 60 Hz AC systems.
Reliable Protection for Low Inrush Electrical Circuits
Miniature circuit breakers automatically disconnect electrical circuits during overload or short circuit conditions, helping protect wiring, switchgear and connected equipment from damage while improving operational safety and reducing downtime.
The B tripping characteristic is ideal for protecting lighting circuits, resistive loads, heating equipment and sensitive electrical systems where low inrush currents are expected. Combined with ABB's proven engineering and high interrupting capacity, the S302P-B10 delivers dependable long-term protection in demanding industrial environments.
Typical Applications
- Industrial control panels.
- Commercial electrical distribution.
- Lighting circuits.
- Resistive load protection.
- Control and auxiliary circuits.
- Industrial switchboards and distribution boards.
