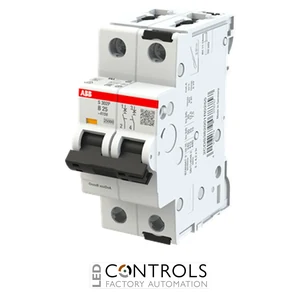

ABB S302P-B25 two-pole 25 A Type B miniature circuit breaker with 25 kA breaking capacity for industrial overload and short-circuit protection.
£84.04
The ABB S302P-B25 (SKU: 2CDS382001R0255) is a premium 2-pole miniature circuit breaker (MCB) designed to provide reliable overload and short-circuit protection for industrial, commercial and OEM electrical installations. As part of the trusted ABB System pro M Compact S300P series, it delivers dependable protection in demanding environments where high fault interruption capability is essential.
Designed for long service life, the S302P-B25 combines thermal overload protection with rapid magnetic short-circuit protection to safeguard electrical equipment, distribution circuits and control systems. Its compact modular construction and DIN rail mounting allow straightforward installation in switchboards, distribution boards and industrial control panels.
With a 25 A rated current, Type B tripping characteristic, 2-pole configuration and a 25 kA breaking capacity, the S302P-B25 is ideally suited for circuits with relatively low inrush currents while providing exceptional fault protection for industrial electrical systems.
Miniature circuit breakers automatically disconnect electrical circuits when overload or short-circuit conditions occur. The ABB S302P-B25 combines thermal overload protection with rapid magnetic tripping to minimise equipment damage, reduce downtime and improve electrical safety.
Its Type B tripping characteristic makes it particularly suitable for circuits with relatively low inrush currents, including lighting, resistive loads and general electrical distribution systems, while its high 25 kA interruption rating provides excellent protection in installations with elevated prospective fault currents.
| Current | 25 A |
|---|---|
| Manufacturer | ABB |
| Series | System pro M Compact S300P |
| Model | S302P-B25 |
| SKU | 2CDS382001R0255 |
| EAN | 4016779078757 |
| Product type | Miniature Circuit Breaker (MCB) |
| Rated current | 25 A |
| Tripping characteristic | Type B |
| Number of poles | 2 |
| Rated operational voltage | 415 V AC |
| Frequency | 50 / 60 Hz |
| Breaking capacity | 25 kA |
| Protection rating | IP20 |
| Mounting type | 35 mm DIN rail |
| Dimensions (H × W × D) | 88 × 35 × 69 mm |
| Weight | Approx. 248 g |
| Electrical endurance | Approx. 20,000 operating cycles |
| Operating temperature | -40°C to +70°C |
| Applicable standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 and CSA 22.2 No. 235 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
It protects industrial and commercial electrical circuits against overloads and short circuits while ensuring reliable operation of connected equipment.
The ABB S302P-B25 has a rated current of 25 A.
A Type B miniature circuit breaker is intended for circuits with relatively low inrush currents, making it suitable for lighting circuits and general electrical distribution.
The S302P-B25 provides a high 25 kA short-circuit breaking capacity for demanding industrial installations.
The breaker is designed for quick installation on a standard 35 mm DIN rail inside distribution boards, switchboards and electrical control panels.
ABB System pro M Compact miniature circuit breakers are trusted by electrical engineers, contractors and panel builders worldwide for dependable circuit protection, outstanding build quality and reliable long-term performance.
