Why Choose the ABB S302P-C32 Miniature Circuit Breaker?

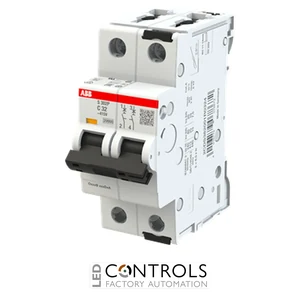

The ABB S302P-C32 (SKU: 2CDS382001R0324) is a high-performance 2-pole miniature circuit breaker (MCB) designed to protect industrial electrical installations against overloads and short circuits. Part of the ABB System pro M Compact S300P series, it combines dependable circuit protection with a compact modular format suitable for professional switchboards, distribution boards and control panels.
The S302P-C32 incorporates a delayed thermal tripping mechanism for overload protection and an electromagnetic mechanism for rapid short-circuit interruption. This combination helps protect cables, machinery and connected equipment while reducing the risk of overheating, electrical damage and unplanned downtime.
Featuring a 32 A rated current, Type C tripping characteristic, 2-pole configuration and an ABB-specified 20 kA AC breaking capacity, the S302P-C32 is suitable for circuits with moderate starting currents, including lighting systems, commercial distribution circuits, machinery and general industrial equipment.
Key Advantages
- Dependable 2-pole overload and short-circuit protection.
- 32 A rated current with Type C tripping characteristic.
- High 20 kA AC short-circuit breaking capacity.
- Suitable for circuits with moderate inrush currents.
- Compact modular construction for efficient panel installation.
- Manufactured in accordance with applicable international IEC and UL standards.
Key Features
- ABB System pro M Compact S300P series.
- 32 A rated current.
- 2-pole configuration.
- Type C tripping characteristic.
- 20 kA AC breaking capacity.
- Delayed thermal overload tripping.
- Electromagnetic short-circuit tripping.
- Compatible with ABB System pro M Compact accessories.
Reliable Protection for Industrial Electrical Circuits
Miniature circuit breakers automatically disconnect a circuit when excessive current is detected. The thermal element responds to sustained overload conditions, while the electromagnetic mechanism reacts rapidly to severe short-circuit currents. Together, these mechanisms help prevent conductor overheating, insulation damage and equipment failure.
The Type C tripping characteristic allows the S302P-C32 to accommodate moderate temporary inrush currents without unnecessary tripping. This makes it a practical choice for commercial and industrial circuits supplying lighting, socket outlets, control equipment and machinery with modest starting currents.
Typical Applications
- Industrial control panels and switchgear.
- Commercial electrical distribution systems.
- Lighting and socket outlet circuits.
- Machine building and OEM equipment.
- Automation and process-control installations.
- Equipment with moderate starting currents.
