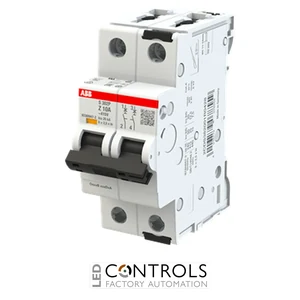

ABB S302P-Z10 2-pole miniature circuit breaker with a 10 A rated current, Type Z tripping characteristic and 25 kA breaking capacity for sensitive industrial and electronic circuit protection.
£103.20
The ABB S302P-Z10 (Product ID: 2CDS382001R0428) is a premium 2-pole miniature circuit breaker (MCB) designed to provide dependable protection against overloads and short circuits in industrial and commercial electrical installations. Part of the renowned ABB System pro M compact S300P series, it offers exceptional reliability, high breaking capacity and long-term performance in demanding environments.
Featuring a Type Z tripping characteristic, the S302P-Z10 is specifically developed for highly sensitive electrical and electronic circuits where rapid fault detection is essential. It is particularly suited to protecting PLCs, instrumentation, semiconductor devices, measurement equipment and other sensitive control systems that require extremely fast magnetic tripping.
With a rated current of 10 A, a 2-pole configuration and an impressive 25 kA short-circuit breaking capacity, the ABB S302P-Z10 delivers reliable circuit protection for industrial control panels, OEM machinery and electrical distribution systems.
The ABB S302P-Z10 automatically disconnects electrical circuits during overload or short-circuit conditions, helping to protect wiring, sensitive electronic equipment and industrial control systems from damage while reducing downtime and improving safety.
Its Type Z tripping characteristic provides extremely rapid magnetic tripping at relatively low fault currents, making it particularly suitable for electronic equipment, PLCs, instrumentation and semiconductor-based devices where fast fault clearance is essential.
| Current | 10 A |
|---|---|
| Manufacturer | ABB |
| Series | System pro M compact S300P |
| Model | S302P-Z10 |
| Product ID | 2CDS382001R0428 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 10 A |
| Number of poles | 2 |
| Number of protected poles | 2 |
| Tripping characteristic | Type Z |
| Rated operational voltage | Up to 415 V AC / 125 V DC |
| Rated insulation voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Breaking capacity (IEC 60947-2) | 25 kA at 400 V AC |
| Breaking capacity (EN 60898-1) | 25 kA at 400 V AC |
| Frequency | 50 / 60 Hz |
| Protection rating | IP20 |
| Overvoltage category | IV |
| Pollution degree | 3 |
| Mounting type | DIN rail |
| Terminal type | Screw terminals |
| Dimensions (H × W × D) | approx. 88 × 35 × 69 mm |
| Weight | approx. 0.248 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S302P-Z10 protects sensitive industrial and commercial electrical circuits against overloads and short circuits, particularly electronic control equipment and instrumentation.
The ABB S302P-Z10 has a rated current of 10 A.
Type Z breakers provide extremely fast magnetic tripping, making them ideal for protecting sensitive electronic equipment, PLCs and instrumentation circuits.
The breaker provides an ultimate short-circuit breaking capacity of up to 25 kA at 400 V AC.
The circuit breaker is designed for quick installation onto a standard DIN rail inside industrial control panels and electrical distribution boards.
ABB System pro M compact miniature circuit breakers are trusted worldwide by electrical engineers, panel builders and OEM manufacturers for delivering reliable circuit protection, exceptional durability and dependable long-term performance.
