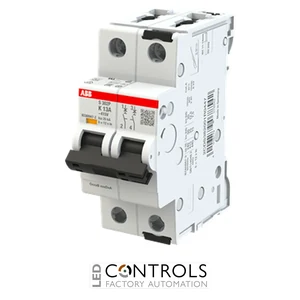

Why Choose the ABB S302P-K13 Miniature Circuit Breaker?
The ABB S302P-K13 (Product ID: 2CDS382001R0447) is a high-performance 2-pole miniature circuit breaker (MCB) designed to protect industrial and commercial electrical installations against overloads and short circuits. As part of the established ABB System pro M compact S300P series, it provides dependable protection, high breaking capacity and robust performance in demanding electrical systems.
Featuring a Type K tripping characteristic, the S302P-K13 is particularly suitable for circuits supplying motors, transformers, solenoids and other inductive equipment with elevated starting currents. The K curve helps accommodate normal inrush current while ensuring rapid disconnection when a genuine electrical fault occurs.
With a rated current of 13 A, a 2-pole configuration and a short-circuit breaking capacity of up to 25 kA, the ABB S302P-K13 is ideal for industrial control panels, machinery, automation systems and infrastructure applications requiring reliable DIN rail circuit protection.
Key Advantages
- High-performance 2-pole miniature circuit breaker.
- 13 A rated current for industrial electrical circuits.
- Type K tripping characteristic suitable for loads with high starting currents.
- 25 kA short-circuit breaking capacity for demanding installations.
- Compact DIN rail design simplifies panel installation.
- Manufactured in accordance with international IEC and UL standards.
Key Features
- ABB System pro M compact S300P series.
- 13 A rated current.
- 2-pole protected configuration.
- Type K tripping characteristic.
- Up to 415 V AC rated operational voltage.
- Up to 125 V DC rated operational voltage.
- 25 kA ultimate short-circuit breaking capacity.
- DIN rail mounting with screw terminals.
Reliable Protection for Industrial Electrical Systems
The ABB S302P-K13 uses thermal and electromagnetic tripping mechanisms to disconnect a circuit when an overload or short circuit occurs. This helps protect cables, machinery and connected electrical equipment from excessive current, overheating and potentially damaging fault conditions.
Its Type K characteristic is optimised for industrial loads that can produce high but temporary starting currents. This makes the breaker particularly useful in motor and transformer circuits where a more sensitive characteristic could cause unnecessary tripping during normal start-up.
Typical Applications
- Industrial control panels.
- Electric motor circuits.
- Transformer protection.
- Solenoids and inductive equipment.
- OEM machinery and automation systems.
- Industrial and commercial distribution boards.
