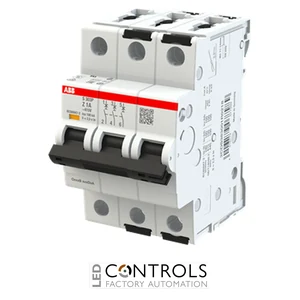

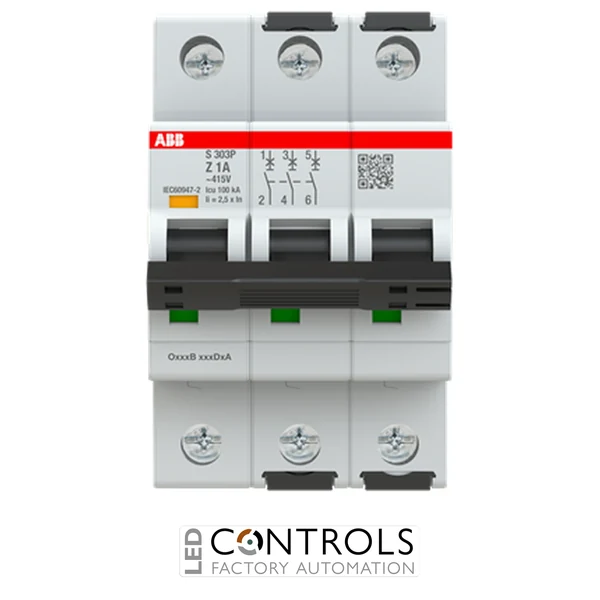

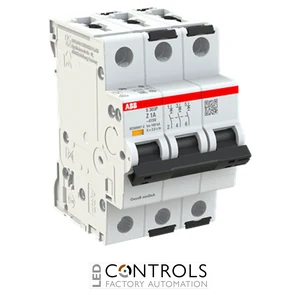

Why Choose the ABB S303P-Z1 Miniature Circuit Breaker?
The ABB S303P-Z1 is a high-performance three-pole miniature circuit breaker (MCB) designed to protect sensitive electrical circuits against overloads and short circuits. As part of the established ABB System pro M compact S300P series, it provides precise protection for industrial, commercial and OEM electrical installations.
Manufactured in accordance with international IEC and UL standards, the S303P-Z1 combines reliable electrical performance with a compact modular design. Its DIN rail mounted format enables straightforward installation within distribution boards, switchboards and industrial control panels.
Featuring a 1 A rated current, a sensitive Z curve tripping characteristic and a 25 kA breaking capacity, this miniature circuit breaker is particularly suitable for electronic equipment, semiconductor devices, control circuits and other loads requiring rapid protection against relatively low overcurrents.
Key Advantages
- Compact three-pole miniature circuit breaker for sensitive electrical circuits.
- 1 A rated current suitable for low-current control and electronic applications.
- Z curve tripping characteristic provides rapid response to overcurrent conditions.
- 25 kA breaking capacity for demanding industrial installations.
- Manufactured in accordance with international IEC and UL standards.
- DIN rail mounting simplifies installation, replacement and maintenance.
Key Features
- ABB System pro M compact S300P series.
- 1 A rated current.
- Three protected poles.
- Z curve tripping characteristic.
- 415 V AC rated operational voltage.
- 25 kA short-circuit breaking capacity.
- IP20 protection rating.
- Standard 35 mm DIN rail mounting.
Rapid Protection for Sensitive Electrical Equipment
The ABB S303P-Z1 automatically disconnects the electrical supply when an overload or short circuit occurs, helping protect conductors, control devices and connected equipment from damage. Its Z curve characteristic provides magnetic tripping at lower overcurrent levels than B, C or D curve circuit breakers.
This sensitive operating characteristic makes the S303P-Z1 particularly suitable for electronic components and control systems that may be damaged by short-duration overcurrents. Its high breaking capacity also supports dependable operation in industrial installations with elevated prospective fault currents.
Typical Applications
- Electronic equipment and semiconductor circuits.
- PLC and industrial automation control panels.
- Instrumentation and measurement systems.
- Low-current control circuits.
- OEM machinery and production equipment.
- Commercial and industrial distribution boards.
