£447.71

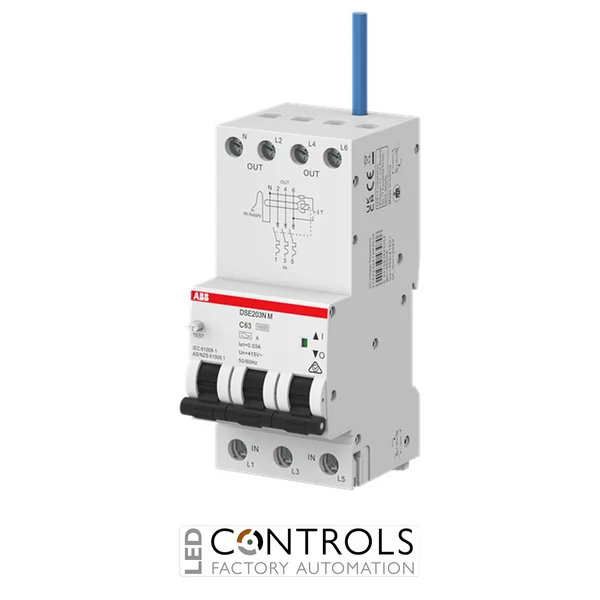

The ABB DSE203NMB63A100 is a premium 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO), engineered to provide dependable protection against overloads, short circuits and earth leakage faults in three-phase electrical installations. Part of the trusted ABB DSE203N M series, this compact protective device combines multiple protection functions into a single unit, making it ideal for commercial, industrial and OEM applications.
Designed to maximise electrical safety whilst simplifying installation, the DSE203NMB63A100 continuously monitors residual current while protecting circuits against overload and short-circuit conditions. By integrating overcurrent and residual current protection into one compact unit, it reduces switchboard space requirements, simplifies wiring and enhances long-term system reliability.
Featuring a 63 A Type B trip characteristic, 100 mA Type A residual current sensitivity and a 10 kA breaking capacity, the ABB DSE203NMB63A100 is ideally suited for protecting sensitive three-phase distribution systems, industrial machinery, automation equipment and commercial electrical installations.
The ABB DSE203NMB63A100 combines miniature circuit breaker functionality with advanced electronic residual current protection in one compact device. This simplifies installation whilst providing dependable protection against overloads, short circuits and earth leakage faults across commercial and industrial electrical systems.
Its Type B tripping characteristic provides rapid magnetic operation for circuits with relatively low inrush currents, making it ideal for protecting sensitive electrical equipment, automation systems, distribution circuits and industrial control panels. Combined with Type A residual current detection, it delivers reliable protection for modern three-phase installations.
| Current | 63 A |
|---|---|
| Phase | Three Phase |
| Function | 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO). |
| Residual Current Type | Type A. |
| Number of Poles | 3 poles plus neutral (neutral unswitched). |
| Connection Type | Bottom power supply connection. |
| Terminal Capacity | Busbar 10 mm²; rigid cables 1–25 mm²; flexible cables 1–16 mm². |
| Electrical Endurance | 10,000 operating cycles. |
| Mechanical Endurance | 20,000 operating cycles. |
| Position of Neutral Terminals | Left side. |
It provides combined overload, short-circuit and earth leakage protection for three-phase electrical circuits in commercial, industrial and OEM installations.
Type B devices provide rapid magnetic tripping at relatively low fault current levels, making them suitable for circuits with low inrush currents and sensitive electrical equipment.
The 100 mA Type A residual current protection detects AC and pulsating DC earth leakage currents, helping improve electrical safety whilst protecting equipment and electrical installations.
The device protects three phases with an unswitched neutral using a 3P+N configuration.
It is designed for DIN rail installation within commercial distribution boards, industrial control panels, OEM machinery and three-phase electrical installations.
ABB DSE203N M RCBOs are trusted by electrical contractors, panel builders and industrial engineers for delivering dependable circuit protection, compact installation and compliance with recognised international electrical standards.
