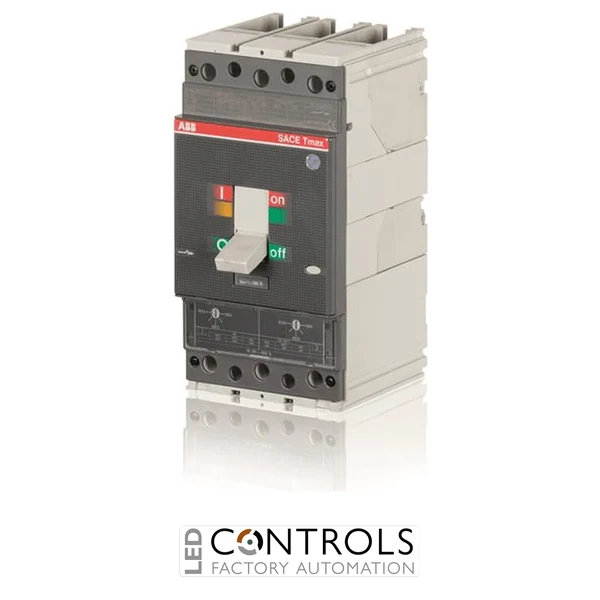

ABB 1SDA054193R1 Tmax T4S 250 A three-pole moulded case circuit breaker with TMA thermomagnetic release, rated current setting of 100 A, magnetic adjustment from 500-1000 A, fixed mounting and front terminals.
The ABB 1SDA054193R1 is a dependable Tmax T4S moulded case circuit breaker (MCCB) designed for reliable protection of industrial and commercial low-voltage electrical distribution systems. Featuring a 250 A frame size, 3-pole configuration and a TMA thermomagnetic release adjustable from 100-1000 A, it provides robust overload and short-circuit protection for demanding electrical installations.
As part of the proven ABB SACE Tmax T series, this fixed MCCB combines compact dimensions with excellent electrical performance. Its front terminal connections allow straightforward installation into switchboards, control panels and industrial distribution assemblies while supporting dependable long-term operation.
Designed for operation up to 690 V AC, the ABB 1SDA054193R1 offers high interrupting capacity and dependable circuit protection. The adjustable TMA thermomagnetic release allows both thermal and magnetic settings to be configured, helping engineers improve protection coordination across modern low-voltage power systems.
The ABB Tmax T4S range is engineered to protect electrical installations from overloads and short-circuit faults. By interrupting abnormal current conditions quickly and safely, these moulded case circuit breakers help protect switchgear, cables and connected equipment while supporting reliable system operation.
The ABB 1SDA054193R1 is well suited to panel builders, OEMs, electrical contractors and maintenance engineers requiring a compact three-pole MCCB with adjustable thermomagnetic protection and strong breaking performance for industrial applications.
| Current | 100 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | ABB |
| Series | SACE Tmax T |
| Model | T4S 250 TMA 100-1000 3p F F |
| Product ID | 1SDA054193R1 |
| EAN | 8015644552930 |
| Product type | Moulded Case Circuit Breaker (MCCB) |
| Rated uninterrupted current (Iu) | 250 A |
| Rated current (In) | 100 A |
| Magnetic adjustment range | 500-1000 A |
| Number of poles | 3P |
| Release type | Thermomagnetic |
| Trip unit | TMA |
| Rated operational voltage | 690 V AC / 750 V DC |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated service short-circuit breaking capacity (Ics) | up to 85 kA at 220-230 V AC |
| Rated ultimate short-circuit breaking capacity (Icu) | up to 85 kA at 220-230 V AC |
| Terminal connection | Front terminals |
| Mounting type | Fixed |
| Standards | IEC |
| Dimensions (H × W × D) | 205 × 105 × 103.5 mm |
| Weight | approx. 2.35 kg |
The ABB 1SDA054193R1 is used to protect industrial and commercial electrical distribution systems against overloads and short-circuit faults.
This moulded case circuit breaker has a 250 A frame size.
The breaker has a 3-pole configuration, making it suitable for three-phase electrical distribution systems.
The ABB 1SDA054193R1 is fitted with a TMA thermomagnetic release with a rated current setting of 100 A and magnetic adjustment from 500-1000 A.
It is typically installed in switchboards, distribution panels, motor control centres and industrial electrical assemblies.
ABB Tmax moulded case circuit breakers are widely trusted by panel builders, electrical contractors and industrial engineers for reliable protection, strong breaking performance and long-term dependability in low-voltage power distribution systems.
