Why Choose the IMO B10TCR3N06-30 RCBO?

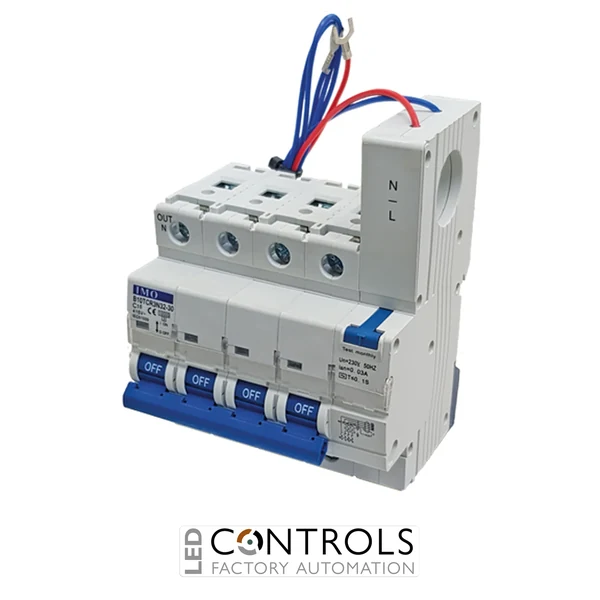

The IMO B10TCR3N06-30 is a compact and dependable Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed to protect three-phase electrical circuits against earth leakage, overload and short-circuit faults. As part of the IMO B10TCR circuit protection range, it combines the functions of an RCCB and miniature circuit breaker in a single DIN rail mounted device.
By integrating residual current and overcurrent protection, the B10TCR3N06-30 helps reduce panel space and simplify circuit design. It continuously monitors current balance while also protecting connected wiring and equipment from excessive current, providing comprehensive protection for commercial and industrial installations.
With a 6 A rated current, 30 mA residual operating current and 3 Pole + Neutral configuration, the IMO B10TCR3N06-30 is suitable for low-current three-phase circuits, control equipment and machinery supplies. Its modular construction enables straightforward installation within electrical distribution boards and control panels.
Key Advantages
- Combined earth leakage, overload and short-circuit protection.
- 6 A rated current for low-current three-phase circuits.
- 30 mA residual sensitivity provides additional protection against electric shock.
- 3 Pole + Neutral configuration for three-phase electrical systems.
- Integrated RCBO design reduces the number of separate protective devices required.
- Compact DIN rail mounting simplifies panel installation.
Key Features
- IMO B10TCR residual current circuit breaker range.
- 6 A rated current.
- 30 mA rated residual operating current.
- 3 Pole + Neutral circuit protection.
- Combined residual current and overcurrent protection.
- Suitable for three-phase commercial and industrial circuits.
- Manual test facility for checking residual current operation.
- Compact modular housing for DIN rail installation.
Combined Protection for Three-Phase Circuits
An RCBO combines residual current detection with overload and short-circuit protection. When leakage to earth or excessive current is detected, the device disconnects the affected circuit, helping protect personnel, wiring and connected electrical equipment.
The IMO B10TCR3N06-30 is particularly useful where individual circuit protection is required without installing separate RCCB and miniature circuit breaker devices. This integrated approach can reduce wiring complexity, conserve DIN rail space and make fault identification easier.
Typical Applications
- Three-phase industrial control circuits.
- Machinery and automation equipment.
- Commercial distribution boards.
- Motor control and auxiliary circuits.
- Manufacturing and production equipment.
- OEM electrical panels and machinery.
