Why Choose the IMO B10TCR3N10-30 RCBO?

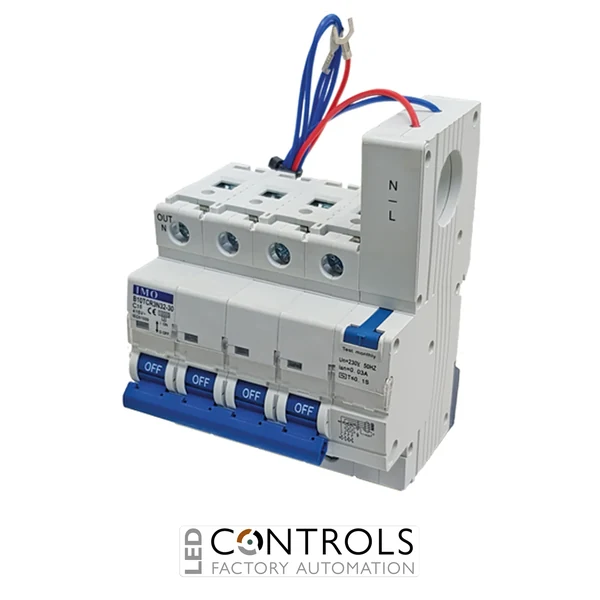

The IMO B10TCR3N10-30 is a high-performance Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed to protect three-phase electrical installations against earth leakage, overload and short-circuit faults. As part of the reliable IMO B10TCR RCBO range, this compact device combines the functions of an RCCB and miniature circuit breaker, providing comprehensive circuit protection within a single DIN rail mounted unit.
Engineered in accordance with IEC 61009-1, the B10TCR3N10-30 delivers dependable protection while reducing installation space and simplifying panel design. It continuously monitors residual current while also protecting against overloads and short circuits, making it ideal for modern industrial and commercial electrical systems.
Featuring a 10 A rated current, 30 mA residual operating current, Type AC protection, C curve tripping characteristic and a 3 Pole + Neutral configuration, the IMO B10TCR3N10-30 is well suited to machinery, control panels and three-phase distribution systems.
Key Advantages
- Combined earth leakage, overload and short-circuit protection.
- 10 A rated current for low-power three-phase circuits.
- 30 mA residual sensitivity helps protect against electric shock.
- Type AC residual current detection for alternating residual currents.
- C curve tripping characteristic suitable for general industrial loads.
- Compact DIN rail mounted RCBO saves valuable panel space.
Key Features
- IMO B10TCR RCBO series.
- 10 A rated current.
- 30 mA rated residual operating current.
- Type AC residual current characteristics.
- C curve overcurrent protection.
- 3 Pole + Neutral (3P+N) configuration.
- 10 kA short-circuit breaking capacity.
- DIN rail mounting with integrated test button.
Complete Circuit Protection in One Device
An RCBO combines the functions of an RCCB and an MCB, providing protection against residual current leakage, overloads and short circuits. This integrated solution helps reduce installation time, simplify wiring and minimise the number of protection devices required within electrical panels.
The IMO B10TCR series is designed for demanding commercial and industrial environments where dependable circuit protection, straightforward installation and long service life are essential.
Typical Applications
- Industrial control panels.
- Three-phase machinery.
- Commercial electrical distribution boards.
- Automation systems.
- Manufacturing equipment.
- OEM electrical installations.
