Original price was: £112.98.£70.51Current price is: £70.51.

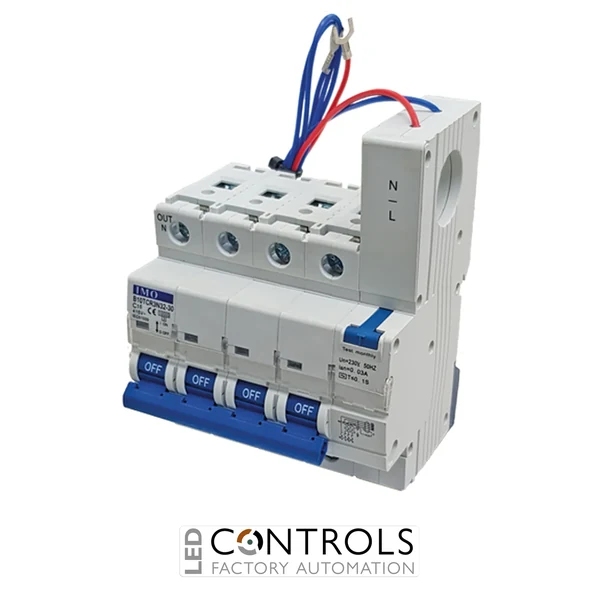

The IMO B10TCR3N32-30 is a robust Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed to protect three-phase electrical circuits against earth leakage, overload and short-circuit faults. As part of the professional IMO B10TCR RCBO range, it combines residual current and overcurrent protection within one compact DIN rail mounted device.
By integrating the functions of an RCCB and miniature circuit breaker, the B10TCR3N32-30 helps simplify control-panel design, reduce wiring requirements and conserve installation space. It continuously monitors the electrical circuit for residual current imbalance while also protecting cables and connected equipment against excessive current.
Featuring a 32 A rated current, 30 mA residual operating current, Type AC protection, a C curve tripping characteristic and a 3 Pole + Neutral configuration, the IMO B10TCR3N32-30 is suitable for machinery, industrial control panels and three-phase commercial distribution systems.
An RCBO combines residual current detection with overload and short-circuit protection. When earth leakage or excessive current is detected, the device disconnects the affected circuit, helping protect personnel, electrical wiring and connected equipment.
The IMO B10TCR3N32-30 provides a space-efficient alternative to installing separate RCCB and miniature circuit breaker devices. Its integrated design helps simplify wiring, improve fault identification and provide comprehensive protection within commercial and industrial distribution systems.
| Current | 32 A |
|---|---|
| Phase | Three Phase |
| HS Code | 8536201090 |
| Country of Manufacture | China |
It protects three-phase electrical circuits against earth leakage, overload and short-circuit faults using a single integrated RCBO.
The IMO B10TCR3N32-30 has a rated current of 32 A.
The device has a 30 mA residual operating current and Type AC characteristics for detecting alternating sinusoidal residual currents.
The B10TCR3N32-30 uses a C curve, making it suitable for general commercial and industrial circuits with moderate starting currents.
It is designed for installation on a standard DIN rail inside an electrical distribution board or industrial control panel.
IMO RCBOs provide electricians, machine builders and panel manufacturers with compact, integrated protection against residual current, overload and short-circuit faults in modern commercial and industrial installations.{ "@context": "https://schema.org/", "@type": "Product", "name": "IMO B10TCR3N32-30 RCBO 32 A 30 mA Type AC C Curve", "sku": "B10TCR3N32-30", "mpn": "B10TCR3N32-30", "brand": { "@type": "Brand", "name": "IMO" }, "category": "Residual Current Circuit Breakers with Overcurrent Protection", "description": "IMO B10TCR3N32-30 RCBO featuring a 32 A rating, 30 mA residual operating current, Type AC protection, C curve tripping and a 3 Pole plus Neutral configuration.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated current", "value": "32 A" }, { "@type": "PropertyValue", "name": "Residual operating current", "value": "30 mA" }, { "@type": "PropertyValue", "name": "Residual current type", "value": "Type AC" }, { "@type": "PropertyValue", "name": "Tripping characteristic", "value": "C Curve" }, { "@type": "PropertyValue", "name": "Breaking capacity", "value": "10 kA" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the IMO B10TCR3N32-30 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It protects three-phase electrical circuits against earth leakage, overload and short-circuit faults using a single integrated RCBO." } }, { "@type": "Question", "name": "What is the rated current of this RCBO?", "acceptedAnswer": { "@type": "Answer", "text": "The IMO B10TCR3N32-30 has a rated current of 32 A." } }, { "@type": "Question", "name": "What residual current protection does it provide?", "acceptedAnswer": { "@type": "Answer", "text": "The device has a 30 mA residual operating current and Type AC characteristics for detecting alternating sinusoidal residual currents." } }, { "@type": "Question", "name": "What tripping curve does this RCBO use?", "acceptedAnswer": { "@type": "Answer", "text": "The B10TCR3N32-30 uses a C curve, making it suitable for general commercial and industrial circuits with moderate starting currents." } }, { "@type": "Question", "name": "How is the B10TCR3N32-30 installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is designed for installation on a standard DIN rail inside an electrical distribution board or industrial control panel." } } ] }
