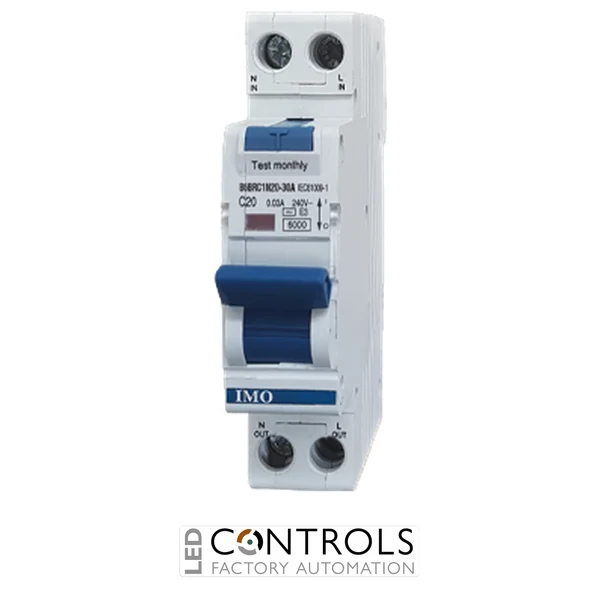

B6BRC1N20-30 IMO RCBO 6kA, 30mA, B Curve 1 P + N, 20Amp, 230VAC

B6BRC1N20-30 IMO RCBO 6kA, 30mA, B Curve 1 P + N, 20Amp, 230VAC

SKU: B6BRC1N20-30Alt SKU: B6BRC1N2030MPN: B6BRC1N20-30
Price
List Price £75.32 ex VAT
Your Price (ex VAT)
£75.32
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £75.32
Trade pricing is personalised to your account

Manufacturer Lead Time

£75.32

Why Choose the IMO B6BRC1N20-30 RCBO?

The IMO B6BRC1N20-30 is a compact RCBO (Residual Current Circuit Breaker with Overcurrent Protection) that combines overload, short-circuit and earth leakage protection in a single device. Manufactured by IMO Precision Controls, it is designed for commercial, industrial and OEM electrical installations where reliable circuit protection and efficient panel design are essential.

By integrating the functions of both a miniature circuit breaker (MCB) and a residual current device (RCD), the B6BRC1N20-30 reduces installation space while providing comprehensive protection for electrical circuits. Its compact DIN rail design enables quick installation within distribution boards and control panels.

Featuring a 20 A current rating, B curve trip characteristic, 30 mA residual current sensitivity and 6 kA breaking capacity, this RCBO is suitable for protecting final circuits supplying industrial machinery, commercial equipment and building services.

Key Advantages

  • Combined RCBO protection against overload, short circuit and earth leakage.
  • 20 A rated current suitable for a wide range of electrical circuits.
  • 30 mA residual current protection enhances electrical safety.
  • B curve trip characteristic for general-purpose circuits.
  • 6 kA breaking capacity provides dependable fault interruption.
  • Compact DIN rail mounting saves valuable panel space.

Key Features

  • IMO B6 series RCBO.
  • 20 A current rating.
  • 30 mA residual current sensitivity.
  • B curve tripping characteristic.
  • 6 kA short-circuit breaking capacity.
  • 1 Pole + Neutral (1P+N) configuration.
  • 230 V AC operation.
  • DIN rail mounting for distribution boards and control panels.

Reliable Electrical Circuit Protection

RCBOs combine overcurrent protection and residual current detection into a single protective device. This helps safeguard wiring, connected equipment and personnel from overloads, short circuits and earth leakage faults while reducing the number of separate protection devices required.

The IMO B6BRC1N20-30 is suitable for industrial automation, commercial electrical systems and machinery installations where dependable protection and straightforward installation are required.

Typical Applications

  • Industrial control panels.
  • Commercial electrical installations.
  • OEM machinery.
  • Distribution boards.
  • Building services.
  • Automation and manufacturing equipment.

Technical Specifications

Phase Single Phase
Voltage 230 V
Manufacturer IMO Precision Controls
Series B6 RCBO
Model B6BRC1N20-30
Product type RCBO
Rated current 20 A
Residual current 30 mA
Trip characteristic B Curve
Breaking capacity 6 kA
Pole configuration 1 Pole + Neutral (1P+N)
Rated voltage 230 V AC
Mounting type DIN rail
Standards IEC/EN 61009-1
HS Code 8536201090
Country of Manufacture China
Poles 1-pole + N
Device Type RCBO
Trip Curve B curve
Breaking Capacity 6 kA
Residual Current 30 mA

Frequently Asked Questions

What is the IMO B6BRC1N20-30 used for?

It provides combined protection against overloads, short circuits and earth leakage faults in commercial and industrial electrical circuits.

What is the current rating?

The RCBO has a rated current of 20 A.

What residual current protection does it provide?

The device has a 30 mA residual current sensitivity to help protect against electric shock.

What does the B curve characteristic mean?

A B curve RCBO is intended for general-purpose circuits where relatively low inrush currents are expected.

How is the RCBO installed?

The IMO B6BRC1N20-30 is designed for standard DIN rail mounting within compatible distribution boards and electrical control panels.

Trusted Electrical Protection from IMO

IMO circuit protection devices are widely specified by panel builders, electrical contractors and automation engineers for dependable protection in commercial and industrial electrical installations.
