Original price was: £102.04.£63.69Current price is: £63.69.

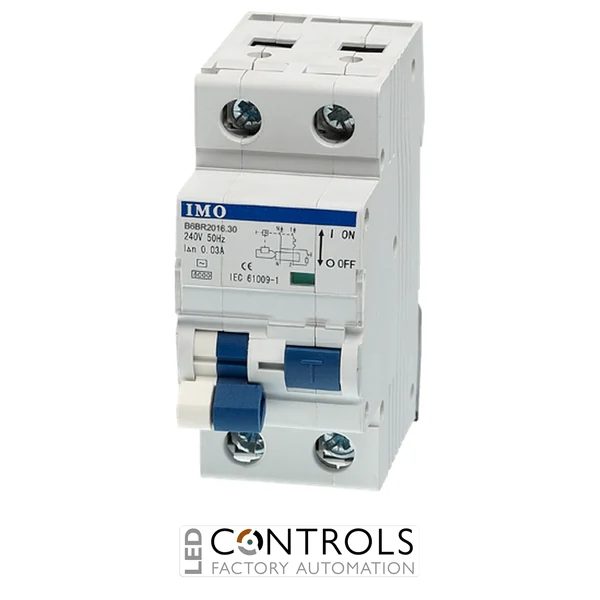

The IMO B6CR1N16-30-A is a compact Type A Residual Current Circuit Breaker with Overcurrent Protection (RCBO) that provides comprehensive protection against overloads, short circuits and earth leakage faults within a single DIN rail-mounted device. Combining the functions of an MCB and RCD simplifies distribution board design while providing reliable protection for electrical installations.
Featuring a C Curve tripping characteristic, this RCBO is ideal for circuits supplying equipment with moderate inrush currents, including motors, transformers, contactors and switched-mode power supplies. Its Type A residual-current protection detects both AC and pulsating DC leakage currents, making it suitable for today's electronic loads such as LED lighting, appliances, automation equipment and control systems.
With a 16 A rated current, 30 mA residual operating current, 6 kA breaking capacity and compact 1 Pole + Neutral design, the B6CR1N16-30-A is an excellent choice for commercial, industrial and OEM electrical installations.
The IMO B6CR1N16-30-A continuously monitors both load current and residual leakage current. Should an overload, short circuit or earth fault occur, the RCBO disconnects the supply quickly, helping protect wiring, connected equipment and users.
Its Type A residual-current characteristic makes it particularly suitable for circuits supplying electronic equipment that may generate pulsating DC leakage currents, while the C Curve characteristic helps prevent nuisance tripping caused by normal equipment start-up currents.
| Voltage | 230 V |
|---|---|
| Phase | Single Phase |
| HS Code | 8536201090 |
| Country of Manufacture | China |
It provides combined overload, short-circuit and Type A residual-current protection for single-phase electrical circuits.
The B6CR1N16-30-A has a rated current of 16 A.
Type A RCBOs detect both alternating AC and pulsating DC residual currents, making them suitable for modern electronic equipment and appliances.
C Curve RCBOs trip magnetically between approximately five and ten times their rated current, making them suitable for circuits with moderate inrush currents.
The device provides 30 mA residual-current protection for additional protection against electric shock.
The IMO B6CR1N16-30-A has a rated short-circuit breaking capacity of 6 kA.
The unit mounts directly onto a standard 35 mm DIN rail within compatible electrical distribution boards and control panels.
The IMO B6 Series RCBO range delivers dependable overcurrent and residual-current protection in a compact, space-saving design suitable for commercial, industrial and OEM electrical installations.{ "@context": "https://schema.org", "@type": "Product", "name": "IMO B6CR1N16-30-A Type A RCBO 16A 30mA C Curve 6kA 1P+N", "sku": "B6CR1N16-30-A", "mpn": "B6CR1N16-30-A", "brand": { "@type": "Brand", "name": "IMO" }, "manufacturer": { "@type": "Organization", "name": "IMO Precision Controls" }, "category": "RCBOs", "description": "IMO B6CR1N16-30-A Type A RCBO with 16 A current rating, 30 mA residual-current sensitivity, C Curve characteristic, 6 kA breaking capacity and 1 Pole + Neutral configuration.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated current", "value": "16 A" }, { "@type": "PropertyValue", "name": "Trip characteristic", "value": "C Curve" }, { "@type": "PropertyValue", "name": "Residual-current type", "value": "Type A" }, { "@type": "PropertyValue", "name": "Residual operating current", "value": "30 mA" }, { "@type": "PropertyValue", "name": "Breaking capacity", "value": "6 kA" }, { "@type": "PropertyValue", "name": "Pole configuration", "value": "1P+N" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the IMO B6CR1N16-30-A used for?", "acceptedAnswer": { "@type": "Answer", "text": "It provides combined overload, short-circuit and Type A residual-current protection for single-phase electrical circuits." } }, { "@type": "Question", "name": "What is the rated current?", "acceptedAnswer": { "@type": "Answer", "text": "The B6CR1N16-30-A has a rated current of 16 A." } }, { "@type": "Question", "name": "What does Type A protection mean?", "acceptedAnswer": { "@type": "Answer", "text": "Type A RCBOs detect alternating AC and pulsating DC residual currents, making them suitable for modern electronic equipment." } }, { "@type": "Question", "name": "What does the C Curve characteristic mean?", "acceptedAnswer": { "@type": "Answer", "text": "C Curve RCBOs are intended for circuits with moderate inrush currents such as motors, transformers and switched-mode power supplies." } }, { "@type": "Question", "name": "What is the breaking capacity?", "acceptedAnswer": { "@type": "Answer", "text": "The IMO B6CR1N16-30-A has a rated short-circuit breaking capacity of 6 kA." } }, { "@type": "Question", "name": "How is the RCBO installed?", "acceptedAnswer": { "@type": "Answer", "text": "The device mounts directly onto a standard 35 mm DIN rail inside compatible distribution boards and control panels." } } ] }
