Why Choose the IMO B6CRC1N10-30-A Compact RCBO?

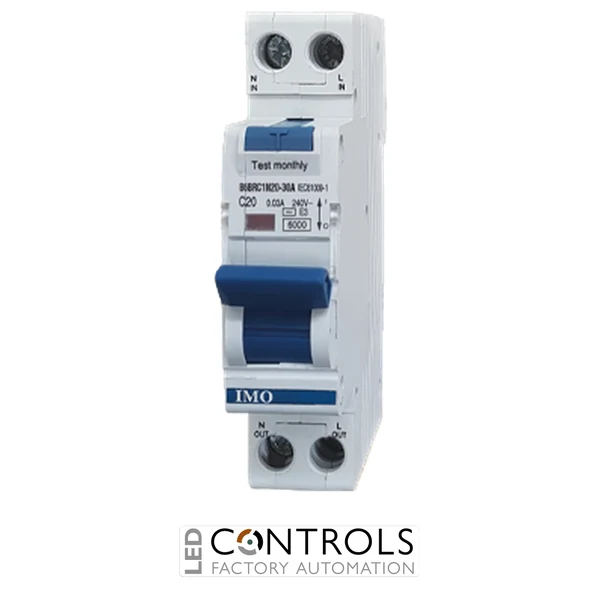

The IMO B6CRC1N10-30-A is a compact Residual Current Circuit Breaker with Overcurrent Protection (RCBO) engineered to protect electrical circuits against earth leakage, overload and short-circuit faults. By combining the functions of an MCB and RCD into a single compact unit, it simplifies installation whilst maximising available space inside consumer units, distribution boards and electrical control panels.
As part of the IMO B6 Compact RCBO range, this model incorporates Type A residual current protection, enabling detection of both sinusoidal AC and pulsating DC residual currents. This makes it particularly suitable for modern electrical installations supplying LED lighting, electronic appliances, switched-mode power supplies and other equipment containing semiconductor components.
With a 10 A rated current, 30 mA residual operating current, Type C tripping characteristic and a 6 kA breaking capacity, the B6CRC1N10-30-A delivers dependable protection for lighting, control circuits, automation equipment and other low-current installations requiring reliable fault protection.
Key Advantages
- Combined earth leakage, overload and short-circuit protection.
- 10 A rated current ideal for lighting and low-power electrical circuits.
- 30 mA Type A residual current protection for enhanced personnel safety.
- Detects AC and pulsating DC leakage currents.
- Type C tripping characteristic suitable for moderate inrush current applications.
- Compact single-module design maximises DIN rail space.
Key Features
- IMO B6 Compact RCBO series.
- 10 A rated current.
- 30 mA residual operating current.
- Type A residual current protection.
- Type C tripping characteristic.
- 6 kA short-circuit breaking capacity.
- Single Pole + Neutral configuration.
- Compact single-module (18 mm) design.
- 230/240 V AC operation.
- 35 mm TS35 DIN rail mounting.
- Finger-safe screw terminals.
- Integrated test button.
Compact Protection for Modern Electrical Installations
The IMO B6CRC1N10-30-A continuously monitors electrical circuits for overloads, short circuits and residual current faults. Should an abnormal condition occur, the RCBO disconnects the supply rapidly, helping to protect people, equipment and property whilst reducing the risk of electrical fires and costly downtime.
Its Type A residual current sensing is ideal for today's electrical installations where electronic equipment can generate pulsating DC leakage currents. Combined with a Type C tripping curve, it provides dependable protection for circuits supplying lighting, control equipment, transformers and automation devices with moderate starting currents.
Typical Applications
- Lighting circuits.
- LED lighting installations.
- Control panels.
- Automation systems.
- Residential consumer units.
- Commercial distribution boards.
- OEM machinery.
- General low-current electrical circuits.
