Original price was: £75.32.£47.00Current price is: £47.00.

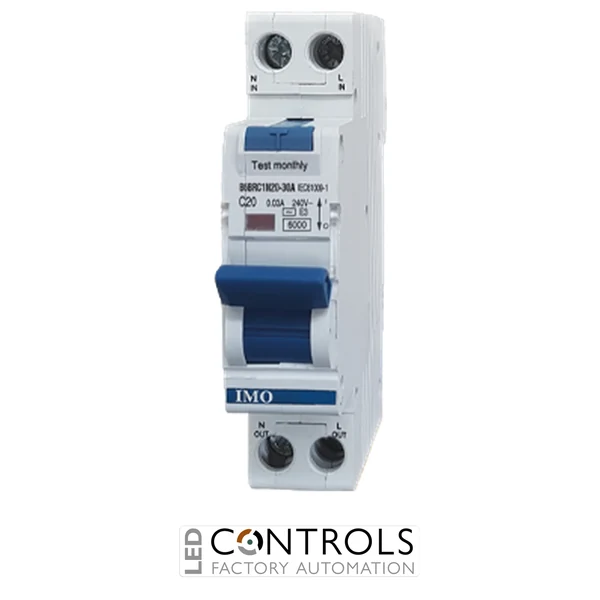

The IMO B6CRC1N10-30 is a compact Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed to protect electrical circuits against earth leakage, overload and short-circuit faults. Combining the functions of an MCB and RCD into a single space-saving device, it provides reliable protection whilst simplifying installation in consumer units, distribution boards and electrical control panels. Manufactured in accordance with IEC/EN 61009-1, it is engineered for dependable operation in residential, commercial and light industrial installations.
As part of the IMO B6 Compact RCBO range, this model features Type AC residual current protection, making it ideal for conventional AC electrical circuits. Its compact single-module construction, finger-safe terminals and DIN rail mounting allow installers to maximise enclosure space without compromising protection.
With a 10 A rated current, 30 mA residual operating current, a Type C tripping characteristic and a 6 kA breaking capacity, the B6CRC1N10-30 is ideal for protecting lighting circuits, socket outlets, control equipment and other low-current electrical installations that may experience moderate inrush currents.
The IMO B6CRC1N10-30 continuously monitors electrical circuits for overloads, short circuits and earth leakage faults. When a fault is detected, the RCBO disconnects the supply rapidly, helping protect people, electrical equipment and property whilst reducing the risk of electrical fires and costly downtime.
Its compact single-module design makes it particularly suitable for installations where enclosure space is limited, whilst the Type C tripping curve accommodates the moderate starting currents associated with transformers, lighting equipment, contactors and control devices.
| Voltage | 230 V |
|---|---|
| HS Code | 8536201090 |
| Country of Manufacture | China |
It provides combined protection against earth leakage, overload and short-circuit faults for low-current electrical circuits.
This model provides Type AC residual current protection for conventional alternating current circuits.
The B6CRC1N10-30 has a rated current of 10 A.
Yes. It features a single-module 18 mm design that helps maximise available DIN rail space inside consumer units and distribution boards.
The RCBO is designed for installation on a standard 35 mm TS35 DIN rail using screw terminal connections.
IMO B6 Compact RCBOs are trusted by electricians, panel builders and maintenance engineers for dependable circuit protection, straightforward installation and reliable long-term performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "IMO B6CRC1N10-30 Compact RCBO 10A 30mA Type AC", "sku": "B6CRC1N10-30", "mpn": "B6CRC1N10-30", "brand": { "@type": "Brand", "name": "IMO" }, "category": "Residual Current Circuit Breakers with Overcurrent Protection", "description": "IMO B6CRC1N10-30 compact RCBO with a 10 A rated current, 30 mA Type AC residual current protection, Type C tripping characteristic and 6 kA breaking capacity.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Rated current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Residual operating current", "value": "30 mA" }, { "@type": "PropertyValue", "name": "Residual current type", "value": "Type AC" }, { "@type": "PropertyValue", "name": "Tripping characteristic", "value": "Type C" }, { "@type": "PropertyValue", "name": "Breaking capacity", "value": "6 kA" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the IMO B6CRC1N10-30 used for?", "acceptedAnswer": { "@type": "Answer", "text": "It provides combined protection against earth leakage, overload and short-circuit faults for low-current electrical circuits." } }, { "@type": "Question", "name": "What type of residual current protection does it provide?", "acceptedAnswer": { "@type": "Answer", "text": "This model provides Type AC residual current protection for conventional alternating current circuits." } }, { "@type": "Question", "name": "What is the rated current?", "acceptedAnswer": { "@type": "Answer", "text": "The device has a rated current of 10 A." } }, { "@type": "Question", "name": "Is this a compact RCBO?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. It features a single-module 18 mm design that helps maximise available DIN rail space." } }, { "@type": "Question", "name": "How is the device installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is installed onto a standard 35 mm TS35 DIN rail using screw terminal connections." } } ] }
