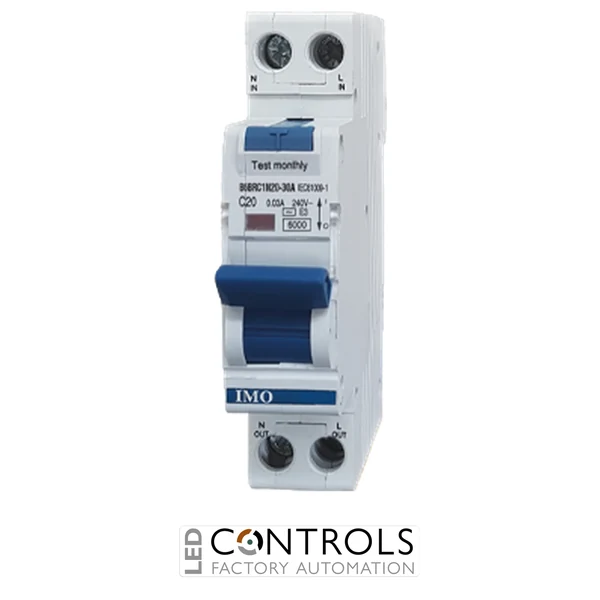

Why Choose the IMO B6CRC1N20-30-A Type A RCBO?
The IMO B6CRC1N20-30-A is a high-performance Residual Current Circuit Breaker with Overcurrent Protection (RCBO) that combines earth leakage, overload and short circuit protection within a single compact DIN rail device. Designed to comply with IEC/EN 61009-1, this Type A RCBO offers enhanced protection by detecting both alternating residual currents and pulsating DC residual currents, making it ideal for modern electrical installations containing electronic equipment and variable speed devices.
The compact single-module design saves valuable panel space while delivering dependable circuit protection. Finger-safe terminals, a contact position indicator and a transparent label cover simplify installation and maintenance, making the device suitable for residential, commercial and industrial distribution boards.
With a 20 A rated current, C curve tripping characteristic, 30 mA residual operating current and 110/230 V AC operation, the B6CRC1N20-30-A is well suited to protecting socket outlets, lighting circuits, commercial installations and industrial control panels where enhanced residual current protection is required.
Key Advantages
- Combined RCD and MCB protection in a single compact device.
- Type A residual current protection suitable for modern electronic loads.
- 20 A C curve protection for circuits with moderate inrush currents.
- 30 mA earth leakage protection for enhanced personnel safety.
- Compact DIN rail design saves enclosure space.
- Suitable for residential, commercial and industrial electrical installations.
Key Features
- IMO B6 RCBO series.
- 20 A rated current.
- C curve tripping characteristic.
- 30 mA residual operating current.
- Type A residual current detection.
- 110/230 V AC operation.
- 1 Pole + Neutral (SPN) configuration.
- 6 kA breaking capacity.
- 18 mm single-module DIN rail mounting.
- Finger-safe connection terminals with contact position indicator.
Enhanced Type A Electrical Protection
Unlike conventional Type AC devices, the IMO B6CRC1N20-30-A detects both alternating residual currents and pulsating DC residual currents generated by modern electronic equipment. This makes it particularly suitable for circuits supplying appliances, LED lighting, electronic power supplies and other equipment incorporating semiconductor technology.
Its compact construction, reliable operation and high-quality terminals make it an excellent choice for new electrical installations and distribution board upgrades where dependable protection and compliance with current wiring practices are required.
Typical Applications
- Residential consumer units.
- Commercial distribution boards.
- Industrial control panels.
- Lighting and socket outlet circuits.
- Electronic equipment and power supplies.
- OEM machinery.
- Building services electrical installations.
