Why Choose the ABB DS-ARC1 B13 A30 Arc Fault Detection Device?

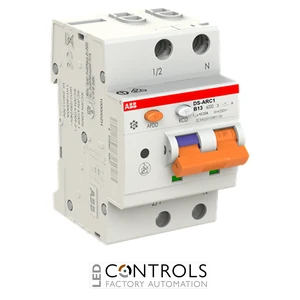

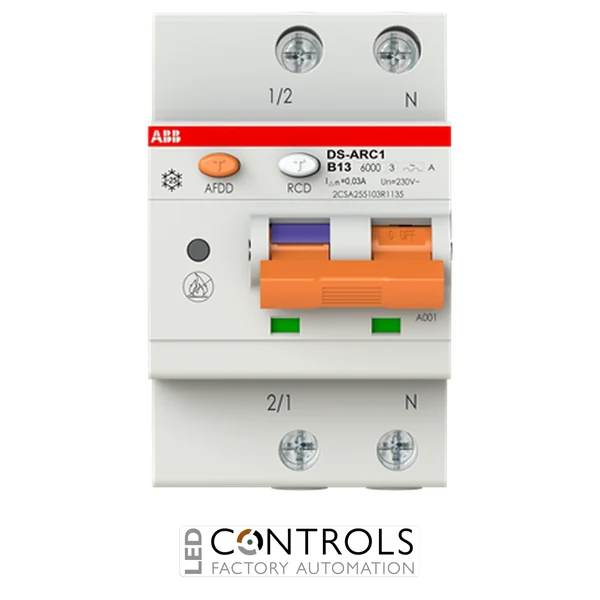

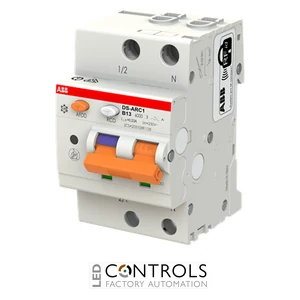

The ABB DS-ARC1 B13 A30 is a compact and highly reliable arc fault detection device (AFDD) with integrated RCBO protection designed to provide comprehensive protection for single-phase electrical circuits. As part of the ABB DS-ARC1 series, it combines arc fault detection, residual current protection, overload protection and short-circuit protection within a single three-module DIN rail device.
This integrated protection solution detects electrical arc faults while also providing Type A residual current protection and thermal-magnetic overcurrent protection. By combining multiple protective functions in one device, the DS-ARC1 helps simplify distribution board design while providing enhanced protection against electrical faults that can create fire and shock hazards.
With a rated current of 13 A, a B tripping characteristic and 30 mA Type A residual current sensitivity, the DS-ARC1 B13 A30 is designed for 230–240 V AC 1P+N circuits. Its compact DIN rail format makes it suitable for residential, commercial and other electrical installations requiring enhanced circuit protection.
Key Advantages
- Combines AFDD and RCBO protection in one compact device.
- 13 A rated current with B tripping characteristic.
- 30 mA Type A residual current protection.
- Provides protection against arc faults, earth leakage, overloads and short circuits.
- 6 kA rated service short-circuit breaking capacity.
- Compact three-module DIN rail design simplifies distribution board installation.
Key Features
- ABB DS-ARC1 arc fault detection device series.
- 13 A rated current.
- B tripping characteristic.
- 30 mA rated residual current.
- Type A residual current protection.
- 1P+N configuration with one protected pole.
- 230–240 V AC rated operational voltage.
- 50–60 Hz rated frequency.
- 6 kA rated service short-circuit breaking capacity.
- DIN rail mounting with screw terminals.
Comprehensive Electrical Circuit Protection
Arc fault detection devices monitor electrical circuits for conditions associated with potentially dangerous electrical arcs. The ABB DS-ARC1 combines this functionality with residual current and thermal-magnetic overcurrent protection, enabling a single device to protect against arc faults, earth leakage currents, overloads and short circuits.
The DS-ARC1 series is designed to simplify the implementation of enhanced electrical protection in modern distribution systems. Its 1P+N configuration, compact three-module construction and DIN rail mounting allow straightforward integration into compatible electrical distribution boards.
Typical Applications
- Residential electrical distribution boards.
- Single-phase final circuits requiring enhanced arc fault protection.
- Buildings and locations where protection against electrical fire risks is important.
- Circuits requiring combined residual current and overcurrent protection.
- Commercial and light industrial electrical installations.
- Electrical installations requiring compact DIN rail circuit protection.
