Why Choose the ABB DS-ARC1 B20 A30 Arc Fault Detection Device?

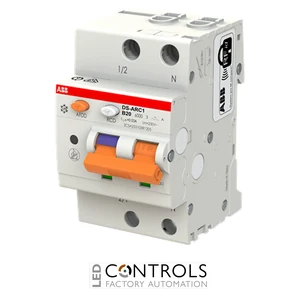

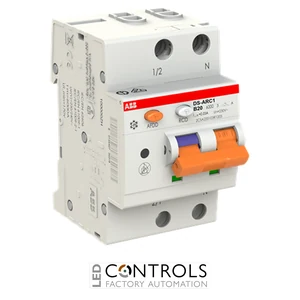

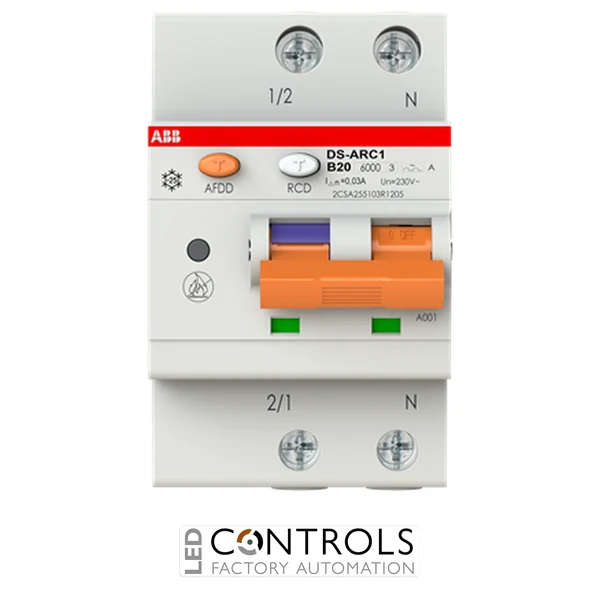

The ABB DS-ARC1 B20 A30 is a compact and highly reliable arc fault detection device (AFDD) with integrated RCBO protection designed to provide comprehensive protection for single-phase electrical circuits. As part of the ABB DS-ARC1 series, it combines arc fault detection, residual current protection, overload protection and short-circuit protection within a single three-module DIN rail device.
This integrated protection solution detects potentially dangerous series and parallel electrical arc faults while also providing Type A residual current protection and thermal-magnetic overcurrent protection. The DS-ARC1 also incorporates internal testing and fault indication functions, helping provide enhanced protection and easier identification of electrical faults.
With a rated current of 20 A, a B tripping characteristic and 30 mA Type A residual current sensitivity, the DS-ARC1 B20 A30 is designed for 230–240 V AC 1P+N circuits. Its compact DIN rail format makes it suitable for residential, commercial and light industrial electrical installations requiring enhanced protection against arc faults, earth leakage, overloads and short circuits.
Key Advantages
- Combines AFDD and RCBO protection in one compact device.
- 20 A rated current with B tripping characteristic.
- 30 mA Type A residual current protection.
- Provides protection against series and parallel arc faults, earth leakage, overloads and short circuits.
- 6 kA rated service short-circuit breaking capacity.
- Compact three-module DIN rail design simplifies installation in distribution boards.
Key Features
- ABB DS-ARC1 arc fault detection device series.
- 20 A rated current.
- B tripping characteristic.
- 30 mA rated residual current.
- Type A residual current protection.
- 1P+N configuration with one protected pole.
- 230–240 V AC rated operational voltage.
- 50–60 Hz rated frequency.
- 6 kA rated service short-circuit breaking capacity.
- Integrated AFDD indication and internal test functionality.
- DIN rail mounting with screw terminals.
Comprehensive Electrical Circuit Protection
Arc fault detection devices monitor electrical circuits for characteristic conditions associated with potentially dangerous electrical arcs. The ABB DS-ARC1 can detect series and parallel arc faults and combines this functionality with residual current and thermal-magnetic overcurrent protection, enabling a single device to provide protection against multiple electrical fault conditions.
The DS-ARC1 series is designed to simplify the implementation of enhanced electrical protection in modern distribution systems. Its 1P+N configuration, compact three-module construction and DIN rail mounting allow straightforward integration into compatible electrical distribution boards, while its integrated indication and testing functions assist with operation and fault identification.
Typical Applications
- Residential electrical distribution boards.
- Single-phase final circuits requiring enhanced arc fault protection.
- Buildings and locations where protection against electrical fire risks is important.
- Circuits requiring combined residual current and overcurrent protection.
- Commercial and light industrial electrical installations.
- Electrical installations requiring compact DIN rail circuit protection.
