Why Choose the ABB DS-ARC1 M B10 A30 Arc Fault Detection Device?

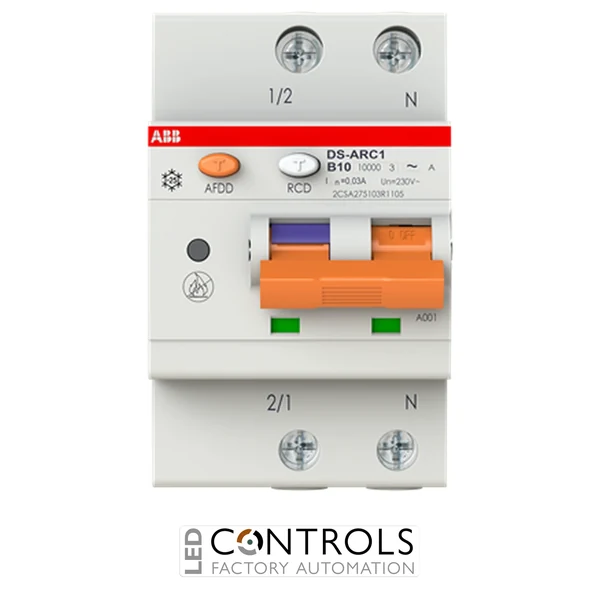

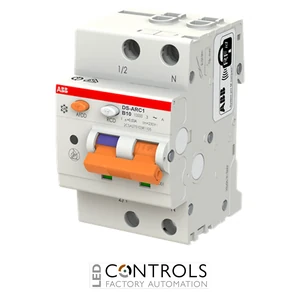

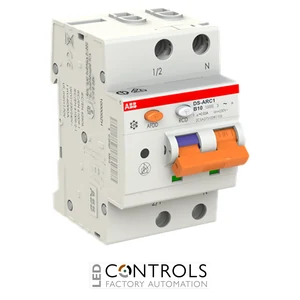

The ABB DS-ARC1 M B10 A30 is a compact arc fault detection device (AFDD) with integrated RCBO protection designed to provide comprehensive protection for single-phase final circuits. As part of the ABB DS-ARC1 M series, it combines arc fault detection, residual current protection, overload protection and short-circuit protection within a single three-module DIN rail device.
The DS-ARC1 M monitors electrical circuits for potentially dangerous arc faults while its integrated Type A RCBO provides protection against residual currents and overcurrents. LED indication assists with network troubleshooting, while dedicated test buttons allow the AFDD and residual current protection functions to be checked. Continuous internal self-testing further supports dependable operation.
With a rated current of 10 A, a B tripping characteristic, 30 mA Type A residual current sensitivity and a rated operational voltage of 230–240 V AC, the DS-ARC1 M B10 A30 provides enhanced protection for 1P+N circuits. The M version provides a 10 kA ultimate short-circuit breaking capacity, making it suitable for installations requiring a higher breaking capacity than the standard DS-ARC1 range.
Key Advantages
- Combines AFDD and RCBO protection in one compact device.
- 10 A rated current with B tripping characteristic.
- 30 mA Type A residual current protection.
- Provides protection against arc faults, earth leakage, overloads and short circuits.
- 10 kA rated ultimate short-circuit breaking capacity.
- LED indication assists with electrical network troubleshooting.
- Dedicated AFDD and residual current test functions support routine verification.
- Compact three-module DIN rail design simplifies distribution board installation.
Key Features
- ABB DS-ARC1 M arc fault detection device series.
- 10 A rated current.
- B tripping characteristic.
- 30 mA rated residual current.
- Type A residual current protection.
- 1P+N configuration with one protected pole.
- 230–240 V AC rated operational voltage.
- 50–60 Hz rated frequency.
- 7.5 kA rated service short-circuit breaking capacity.
- 10 kA rated ultimate short-circuit breaking capacity.
- Continuous internal self-test functionality.
- Supply connection possible from the top or bottom.
- Compatible with ABB System pro M compact accessories.
- DIN rail mounting with screw terminals.
Comprehensive Electrical Circuit Protection
Arc fault detection devices monitor electrical circuits for conditions associated with potentially dangerous electrical arcs. The ABB DS-ARC1 M combines AFDD functionality with residual current and thermal-magnetic overcurrent protection, enabling a single device to protect against arc faults, earth leakage currents, overloads and short circuits.
The DS-ARC1 M series is designed for residential and commercial installations requiring enhanced final-circuit protection and a higher short-circuit breaking capacity. Its LED troubleshooting indication, dedicated test functions, continuous internal self-test, flexible top or bottom supply connection and compatibility with ABB System pro M compact accessories support straightforward installation and maintenance.
Typical Applications
- Residential electrical distribution boards.
- Commercial electrical distribution systems.
- Single-phase final circuits requiring enhanced arc fault protection.
- Lighting and other circuits protected at 10 A.
- Installations requiring a 10 kA ultimate short-circuit breaking capacity.
- Circuits requiring combined residual current and overcurrent protection.
