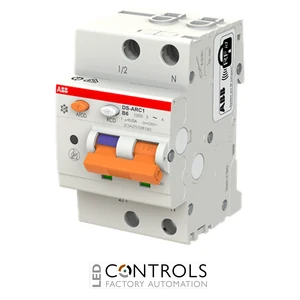

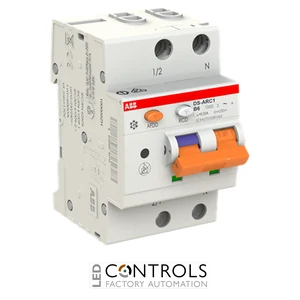

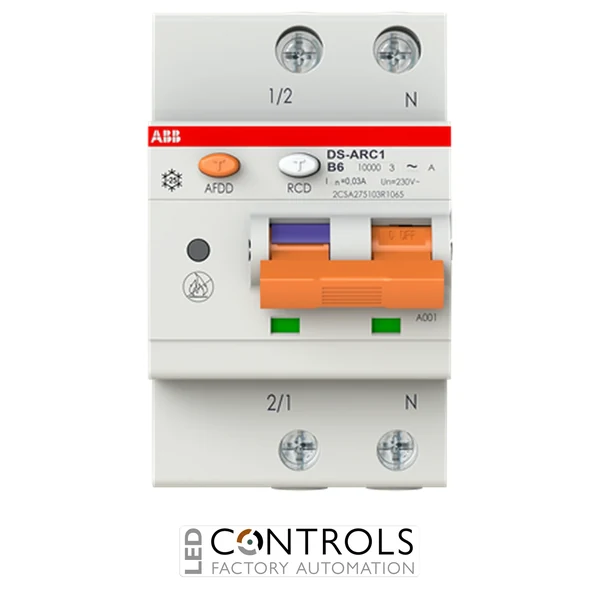

Why Choose the ABB DS-ARC1 M B6 A30 Arc Fault Detection Device?
The ABB DS-ARC1 M B6 A30 is a compact arc fault detection device (AFDD) with integrated RCBO protection designed to provide comprehensive protection for single-phase electrical circuits. As part of the ABB DS-ARC1 M series, it combines arc fault detection, residual current protection, overload protection and short-circuit protection within a single DIN rail device.
The DS-ARC1 M monitors electrical circuits for potentially dangerous arc faults while its integrated Type A RCBO provides protection against residual currents and overcurrents. Dedicated AFDD and residual current test functions, together with internal self-testing and fault indication, support dependable operation and straightforward troubleshooting in modern electrical installations.
With a rated current of 6 A, a B tripping characteristic and 30 mA Type A residual current sensitivity, the DS-ARC1 M B6 A30 is designed for 1P+N single-phase circuits. The DS-ARC1 M range provides a 10 kA short-circuit breaking capacity, making this model suitable for lower-current circuits requiring enhanced arc fault, residual current and overcurrent protection.
Key Advantages
- Combines AFDD and RCBO protection in one compact device.
- 6 A rated current with B tripping characteristic.
- 30 mA Type A residual current protection.
- Provides protection against arc faults, residual currents, overloads and short circuits.
- 10 kA short-circuit breaking capacity for demanding installation conditions.
- Dedicated test functions support verification of AFDD and residual current protection.
- Internal self-testing supports dependable arc fault detection.
- DIN rail construction simplifies integration into electrical distribution boards.
Key Features
- ABB DS-ARC1 M arc fault detection device series.
- 6 A rated current.
- B tripping characteristic.
- 30 mA rated residual current.
- Type A residual current protection.
- 1P+N configuration.
- 10 kA short-circuit breaking capacity.
- Integrated AFDD and RCBO functionality.
- Dedicated AFDD and residual current test functions.
- Internal self-testing functionality.
- Designed for DIN rail installation.
- Part of the ABB System pro M compact circuit protection portfolio.
Comprehensive Electrical Circuit Protection
Arc fault detection devices monitor electrical circuits for conditions associated with potentially dangerous electrical arcs. The ABB DS-ARC1 M combines AFDD functionality with Type A residual current and thermal-magnetic overcurrent protection, enabling a single protective device to address arc faults, residual currents, overloads and short circuits.
The DS-ARC1 M range is designed for electrical installations requiring enhanced final-circuit protection together with a 10 kA short-circuit breaking capacity. By integrating several protective functions into one DIN rail device, the range helps simplify distribution board design while providing comprehensive protection for single-phase circuits.
Typical Applications
- Residential electrical distribution boards.
- Commercial electrical distribution systems.
- Lower-current single-phase final circuits requiring enhanced arc fault protection.
- Lighting and control circuits protected at 6 A.
- Installations requiring a 10 kA short-circuit breaking capacity.
- Circuits requiring combined residual current and overcurrent protection.
