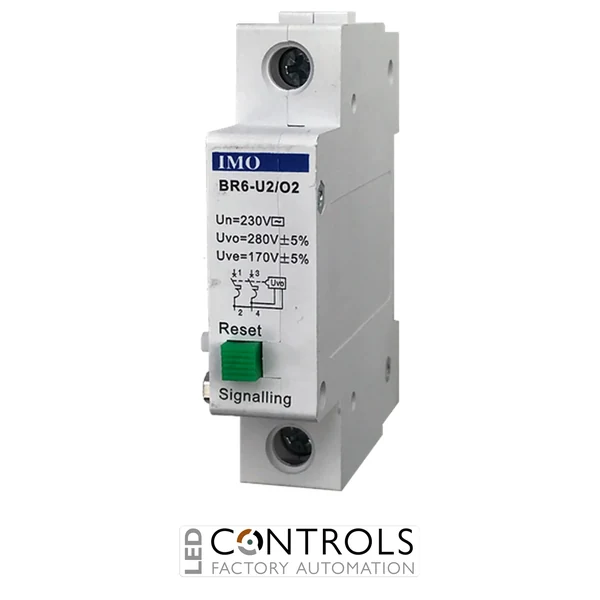

Why Choose the IMO BR6-U2-O2 Under / Over Voltage Trip?
The IMO BR6-U2-O2 is an under / over voltage trip accessory designed specifically for the IMO BR6 miniature circuit breaker range. It continuously monitors the supply voltage and automatically trips the associated circuit breaker if the voltage falls below or rises above preset operating limits, helping to protect connected equipment from potentially damaging voltage conditions.
This compact accessory mounts directly onto the left-hand side of compatible BR6 miniature circuit breakers, providing a simple solution for voltage monitoring without requiring additional protective devices. It is ideal for protecting motors, control panels, automation equipment and sensitive electrical installations where supply voltage stability is critical.
Designed for a 230 V AC supply, the BR6-U2-O2 trips when the supply voltage drops below approximately 170 V AC or rises above approximately 280 V AC, helping prevent equipment damage caused by abnormal mains conditions.
Key Advantages
- Designed specifically for IMO BR6 miniature circuit breakers.
- Provides under and over voltage protection.
- Automatically trips the connected MCB during abnormal supply conditions.
- Compact 17.5 mm wide modular design.
- Simple left-side mounting onto compatible BR6 MCBs.
- Helps protect motors, machinery and sensitive electrical equipment.
Key Features
- Under / over voltage trip accessory.
- Compatible with IMO BR6 miniature circuit breakers.
- 230 V AC rated operating voltage.
- Undervoltage trip point approximately 170 V AC ±5%.
- Overvoltage trip point approximately 280 V AC ±5%.
- 17.5 mm module width.
- DIN rail compatible when fitted to BR6 MCB.
- Quick side-mounted installation.
Reliable Voltage Protection for Electrical Installations
The IMO BR6-U2-O2 provides additional protection by disconnecting the associated miniature circuit breaker whenever supply voltage falls outside acceptable operating limits. This helps minimise the risk of damage to motors, automation systems and sensitive electrical equipment caused by abnormal mains voltage.
Its compact design integrates directly with the IMO BR6 circuit breaker range, making it an ideal solution for industrial control panels, machinery, commercial buildings and OEM electrical equipment where dependable voltage monitoring is required.
Typical Applications
- Industrial control panels.
- Machine building.
- Motor protection systems.
- Commercial electrical installations.
- Automation equipment.
- OEM switchboards and distribution panels.
