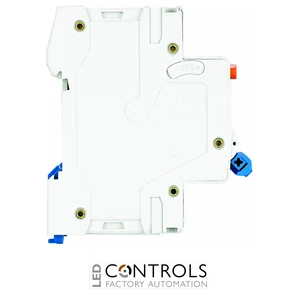

Why Choose the Chint NB310L-3N-B06 RCBO?
The Chint NB310L-3N-B06 is a reliable Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed to protect three-phase electrical circuits against earth leakage, overloads and short circuits. It combines residual current protection and overcurrent protection within one compact DIN rail mounted device for dependable low-voltage circuit safety.
As part of the Chint NB310L RCBO series, this model is suitable for residential, commercial and light industrial distribution systems requiring multi-pole protection. Its 3P+N configuration provides protection and switching for three-phase circuits with neutral, supporting safe operation in modern electrical distribution boards and control panels.
With a rated current of 6 A, B curve tripping characteristic, Type A residual current protection and a 30 mA residual operating current, the NB310L-3N-B06 is ideal for low-load three-phase circuits and equipment with low inrush current. Its 6 kA breaking capacity provides dependable short circuit protection for demanding installations.
Key Advantages
- Compact RCBO combining residual current and overcurrent protection.
- 6 A rated current suitable for low-load three-phase circuits.
- B curve tripping characteristic for circuits with low inrush current.
- 3P+N configuration for three-phase electrical systems with neutral.
- Type A residual current protection detects AC and pulsating DC residual currents.
- 6 kA breaking capacity for reliable short circuit protection.
Key Features
- Chint NB310L residual current operated circuit breaker series.
- 6 A rated current.
- B curve instantaneous tripping.
- 3 pole + neutral configuration.
- Rated voltage: 400 V AC.
- Rated residual operating current: 30 mA.
- Type A residual current protection.
- DIN rail mounting for distribution boards and control panels.
Reliable Protection for Three-Phase Circuits
RCBOs such as the Chint NB310L-3N-B06 provide combined protection against residual current faults and overcurrent conditions. This helps reduce the risk of electric shock, cable overheating and equipment damage caused by earth leakage, overloads or short circuits.
The B curve characteristic makes this model suitable for circuits with low starting currents, such as control circuits, lighting circuits and sensitive three-phase loads. Its Type A residual current protection detects both sinusoidal AC and pulsating DC residual currents, supporting reliable protection for modern electrical installations.
Typical Applications
- Three-phase distribution boards.
- Commercial electrical installations.
- Light industrial control panels.
- Low-load three-phase circuits.
- Lighting and control circuits.
- Equipment requiring 3P+N residual current and overcurrent protection.
