Why Choose the ABB S-ARC1 C32 Arc Fault Detection Device?

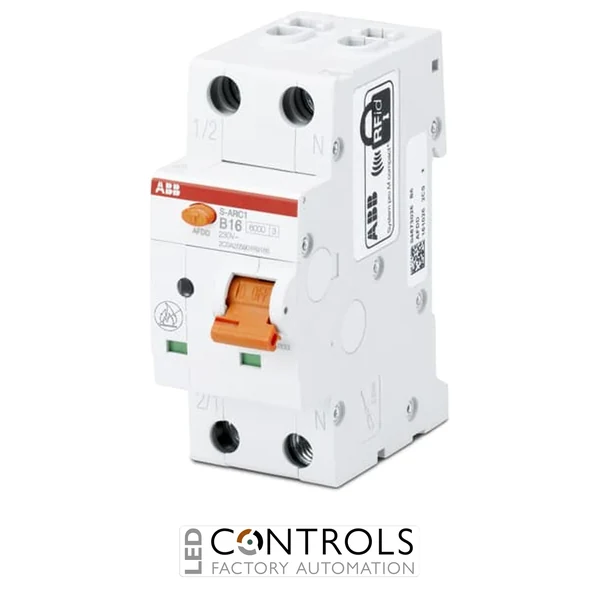

The ABB S-ARC1 C32 is a compact arc fault detection device (AFDD) with integrated miniature circuit breaker (MCB) designed to provide enhanced protection for single-phase final circuits. As part of the ABB S-ARC1 series, it combines arc fault detection with thermal-magnetic overload and short-circuit protection within a single two-module DIN rail device.
The S-ARC1 is designed to protect end-user single-phase circuits against earth arc faults, parallel arc faults and series arc faults, while its integrated MCB provides protection against overloads and short-circuit currents. This combination provides protection against electrical arcing conditions that conventional MCB protection alone is not designed to detect.
With a rated current of 32 A, a C tripping characteristic and a 6 kA short-circuit breaking capacity, the S-ARC1 C32 is suitable for compatible residential and commercial final circuits. Its C characteristic accommodates moderate starting and inrush currents, while its 1P+N configuration and compact construction support space-efficient installation in distribution boards.
Key Advantages
- Combines arc fault detection and MCB protection in one compact device.
- 32 A rated current with C tripping characteristic.
- Protects against earth, parallel and series arc faults.
- Integrated thermal-magnetic protection against overloads and short circuits.
- 6 kA short-circuit breaking capacity.
- 1P+N configuration for single-phase final circuits.
- C characteristic is suitable for compatible loads with moderate starting or inrush currents.
- Designed for both residential and commercial applications.
- Compact two-module design helps conserve distribution board space.
Key Features
- ABB S-ARC1 arc fault detection device series.
- 32 A rated current.
- C tripping characteristic.
- 1P+N configuration.
- 6 kA short-circuit breaking capacity.
- Detection of earth arc faults.
- Detection of parallel arc faults.
- Detection of series arc faults.
- Integrated thermal-magnetic MCB functionality.
- Protection against overload currents.
- Protection against short-circuit currents.
- Suitable for residential applications.
- Suitable for commercial applications.
- DIN rail mounting.
- Compact two-module construction.
- 180 g device weight.
- Designed in accordance with IEC/EN 62606 and IEC/EN 60898-1.
Enhanced Arc Fault and Overcurrent Protection
Arc fault detection devices monitor electrical circuits for characteristics associated with potentially dangerous electrical arcing. The ABB S-ARC1 is designed to protect end-user single-phase circuits against earth, parallel and series arc faults, while its integrated miniature circuit breaker provides thermal-magnetic protection against overloads and short-circuit currents.
Combining AFDD and MCB functionality within a compact device helps simplify distribution board design while providing protection against electrical faults that conventional MCBs alone are not designed to detect. The C tripping characteristic of the S-ARC1 C32 also makes it suitable for compatible circuits where moderate starting or inrush currents may occur.
Typical Applications
- Residential electrical distribution boards.
- Commercial electrical distribution systems.
- Single-phase final circuits requiring enhanced arc fault protection.
- Circuits protected at 32 A requiring a C tripping characteristic.
- Compatible electrical loads with moderate starting or inrush currents.
- Installations where enhanced protection against electrically initiated fires is required.
- Installations requiring combined arc fault, overload and short-circuit protection.
