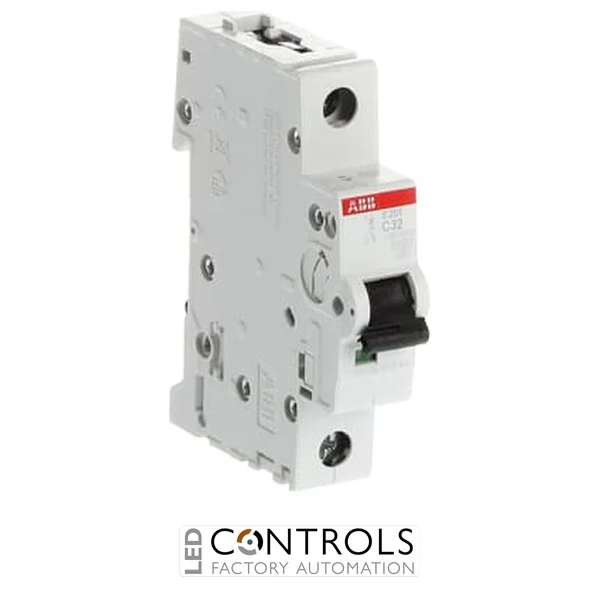

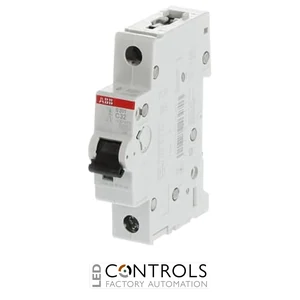

Why Choose the ABB S201-C32 Miniature Circuit Breaker?
The ABB S201-C32 is a high-performance single-pole miniature circuit breaker (MCB) from the ABB System pro M compact S200 range. Designed to provide dependable protection against overloads and short circuits, it combines advanced thermal-magnetic tripping technology with a compact modular design suitable for residential, commercial and industrial electrical installations.
Featuring a 32 A rated current and a Type C tripping characteristic, the S201-C32 is ideal for circuits supplying equipment with moderate inrush currents, including motors, transformers, compressors, pumps and HVAC systems. Its current-limiting construction helps minimise fault energy, protecting both wiring and connected electrical equipment.
The S201-C32 delivers a 6 kA rated short-circuit breaking capacity at 230/400 V AC in accordance with IEC/EN 60898-1. It also complies with IEC/EN 60947-2 and UL 1077, making it suitable for residential, commercial and industrial applications. The breaker is compatible with ABB System pro M compact accessories, including bottom-mounted auxiliary contacts.
Key Advantages
- Reliable 32 A miniature circuit breaker for low-voltage circuit protection.
- Type C tripping characteristic for circuits with moderate inrush currents.
- Protects against overloads and short circuits.
- 6 kA rated breaking capacity according to IEC/EN 60898-1.
- Compact single-module DIN rail mounted design.
- Compatible with ABB System pro M compact accessories.
Key Features
- ABB System pro M compact S200 series.
- Single-pole (1P) configuration.
- 32 A rated current.
- Type C tripping characteristic.
- 230/400 V AC rated operating voltage.
- 50 / 60 Hz operation.
- 6 kA rated short-circuit breaking capacity.
- Thermal overload and electromagnetic short-circuit protection.
- Current-limiting design.
- 35 mm DIN rail mounting.
Reliable Protection for High-Load Electrical Circuits
The ABB S201-C32 incorporates thermal overload protection and rapid electromagnetic short-circuit protection to ensure reliable operation under demanding electrical conditions. Its Type C characteristic allows temporary inrush currents associated with inductive loads while providing rapid disconnection during fault conditions.
As part of the ABB System pro M compact product family, the S201-C32 integrates seamlessly with compatible accessories, enabling flexible installation within distribution boards, machinery, commercial electrical systems and industrial control panels.
Typical Applications
- Commercial distribution boards.
- Industrial control panels.
- Motor and pump circuits.
- HVAC systems.
- Power distribution circuits.
- General industrial electrical installations.
