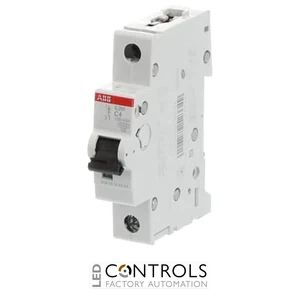

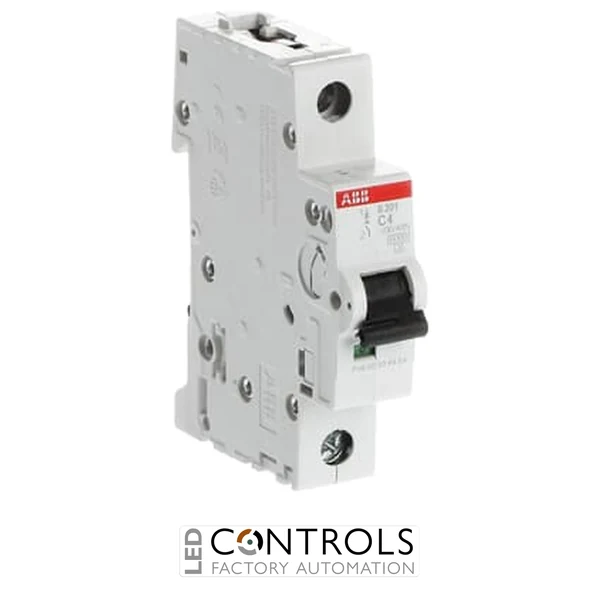

ABB S201-C4 single-pole miniature circuit breaker with a 4 A rated current, Type C tripping characteristic and 6 kA breaking capacity for control, automation and auxiliary electrical circuits.
£21.14
The ABB S201-C4 is a compact single-pole miniature circuit breaker (MCB) from the established ABB System pro M compact S200 range. It is designed to protect low-voltage cables and circuits against overloads and short circuits using reliable thermal-magnetic tripping technology.
With a 4 A rated current and a Type C tripping characteristic, the S201-C4 is suitable for lower-current circuits that may experience moderate starting or inrush currents. Typical uses include industrial control circuits, automation equipment, instrumentation, signalling systems, small transformers and auxiliary power supplies.
The ABB S201-C4 offers a 6 kA rated short-circuit breaking capacity at 230/400 V AC under IEC/EN 60898-1. It also provides a 10 kA ultimate short-circuit breaking capacity under IEC/EN 60947-2, helping deliver dependable circuit protection across residential, commercial and industrial installations.
The ABB S201-C4 combines two complementary tripping mechanisms. Its delayed thermal release responds to sustained overload conditions, while the electromagnetic release rapidly disconnects the circuit when a short circuit occurs.
The Type C characteristic accommodates moderate temporary inrush currents without unnecessary tripping. This makes the breaker particularly suitable for control panels and auxiliary circuits containing contactors, relays, small transformers, power supplies and other inductive components.
| Current | 4 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M compact S200 |
| Model | S201-C4 |
| Manufacturer part number | 2CDS251001R0044 |
| EAN | 4016779523349 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 4 A |
| Tripping characteristic | C |
| Number of poles | 1 |
| Number of protected poles | 1 |
| Rated operating voltage | 230/400 V AC |
| Frequency | 50 / 60 Hz |
| Rated short-circuit breaking capacity | 6 kA according to IEC/EN 60898-1 |
| Ultimate short-circuit breaking capacity | 10 kA according to IEC/EN 60947-2 |
| Rated insulation voltage | 440 V |
| Rated impulse withstand voltage | 4 kV |
| Current-limiting class | 3 |
| Power loss per pole | 1.8 W |
| Mechanical endurance | 20,000 operating cycles |
| Electrical endurance | 20,000 operating cycles |
| Terminal tightening torque | 2.8 N·m |
| Solid conductor capacity | 0.75 to 35 mm² |
| Flexible conductor capacity | 0.75 to 25 mm² |
| Protection rating | IP20 |
| Operating temperature | -25°C to +55°C |
| Mounting type | 35 mm DIN rail |
| Module width | 1 module |
| Dimensions (W × H × D) | 17.5 × 88 × 69 mm |
| Net weight | Approximately 0.112 kg |
| Applicable standards | IEC/EN 60898-1, IEC/EN 60947-2 and UL 1077 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S201-C4 protects lower-current electrical circuits against overloads and short circuits. Typical applications include control, automation, instrumentation, signalling and auxiliary circuits.
The ABB S201-C4 has a rated current of 4 A.
A Type C characteristic is suitable for circuits with moderate inrush currents, including circuits supplying contactors, relays, small transformers and similar inductive equipment.
It has a rated short-circuit breaking capacity of 6 kA according to IEC/EN 60898-1 and an ultimate breaking capacity of 10 kA according to IEC/EN 60947-2.
The circuit breaker mounts onto a standard 35 mm DIN rail inside a compatible distribution board, electrical enclosure or control panel.
ABB System pro M compact miniature circuit breakers are widely specified by electrical contractors, panel builders and automation engineers for dependable circuit protection, compact installation and consistent performance.
