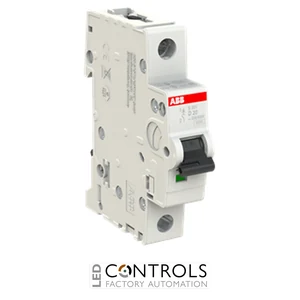

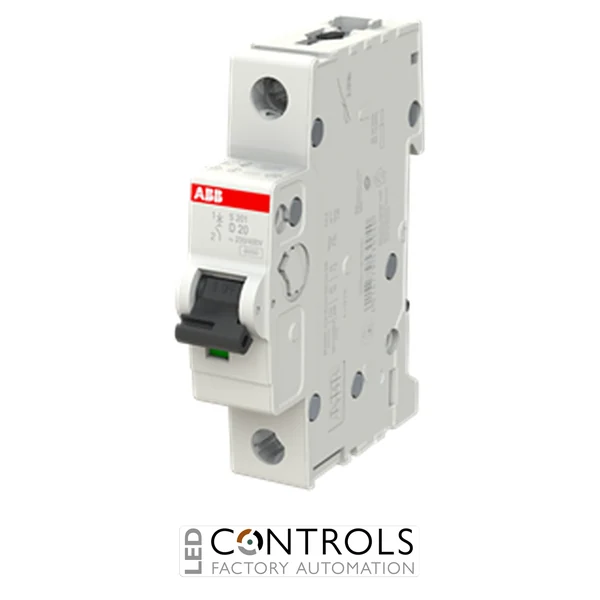

ABB S201-D20 miniature circuit breaker with a 20 A rated current, D curve tripping characteristic and 6 kA breaking capacity for reliable overload and short-circuit protection.
£21.48
The ABB S201-D20 is a premium single-pole miniature circuit breaker (MCB) designed to provide dependable protection against overloads and short circuits in residential, commercial and industrial electrical installations. As part of the trusted ABB System pro M Compact S200 series, it delivers reliable current limiting performance, compact installation and long service life for modern electrical distribution systems.
Engineered with advanced thermal and electromagnetic tripping mechanisms, the S201-D20 helps safeguard electrical circuits by responding accurately to overloads and fault currents. Its modular DIN rail design enables quick installation inside distribution boards and control panels, while compatibility with ABB auxiliary accessories provides additional flexibility for professional electrical installations.
Featuring a 20 A rated current, D curve tripping characteristic and 6 kA breaking capacity, the ABB S201-D20 is particularly suited to protecting circuits supplying motors, transformers, power supplies and other equipment with high inrush currents.
The ABB S201-D20 automatically disconnects electrical circuits when overload or short-circuit conditions occur, helping protect wiring, equipment and electrical systems from damage. Its combined thermal and magnetic tripping mechanisms provide dependable protection while maintaining reliable everyday operation.
The D curve characteristic allows the breaker to tolerate high temporary inrush currents before magnetic tripping occurs, making it particularly suitable for circuits supplying transformers, motors, solenoids and industrial machinery with demanding start-up characteristics.
| Current | 20 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | ABB |
| Series | System pro M Compact S200 |
| Model | S201-D20 |
| Manufacturer part number | 2CDS251001R0201 |
| Product type | Miniature circuit breaker (MCB) |
| Rated current | 20 A |
| Number of poles | 1 |
| Tripping characteristic | D |
| Breaking capacity | 6 kA |
| Rated operational voltage | 230 / 400 V AC |
| Frequency | 50 / 60 Hz |
| Protection rating | IP20 |
| Mounting type | 35 mm DIN rail |
| Dimensions (H × W × D) | approx. 88 × 17.5 × 69 mm |
| Weight | approx. 0.125 kg |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
The ABB S201-D20 protects electrical circuits against overloads and short circuits, especially where connected equipment has high starting currents.
A D curve breaker is designed for applications with high temporary inrush currents, making it suitable for motors, transformers and inductive electrical equipment.
The ABB S201-D20 has a rated current of 20 A.
The breaker provides a 6 kA short-circuit breaking capacity for dependable circuit protection.
The breaker is designed for installation on a standard 35 mm DIN rail inside electrical distribution boards and industrial control panels.
ABB System pro M Compact miniature circuit breakers are trusted by electricians, contractors and panel builders worldwide for delivering reliable protection, durable construction and consistent long-term performance across demanding electrical installations.
